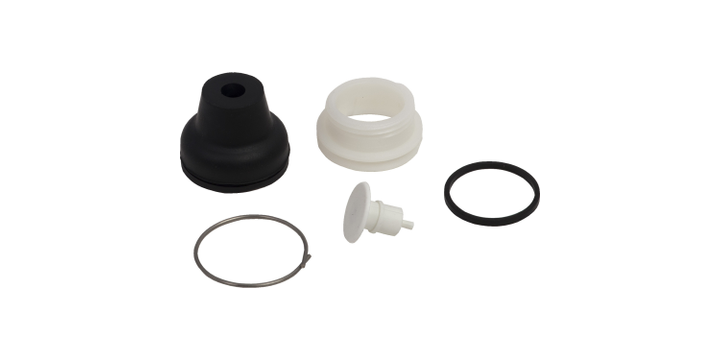

施耐德电气 XACB9211 按钮头，Harmony Xac，塑料，白色，带保护套，操作行程 16 毫米，25...+ 70 摄氏度
Specifications
Please select at least one specification below.
Ik Degree Of Protection
IK08 conforming to IEC 62262
Product Compatibility
XESD1191
XESD1291
XESD1181
XESD1281
Product Or Component Type
Head for push-button
This spec is not available in the specification table.
Range Of Product
Harmony XAC
This spec is not available in the specification table.
Standards
IEC 60947-5-1
CSA C22.2 No 14
IEC 60947-5-1
This spec is not available in the specification table.
Ip Degree Of Protection
IP65 conforming to IEC 60529
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-25…70 °C
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Marking
Unmarked
This spec is not available in the specification table.
Shock Resistance
100 gn conforming to IEC 60068-2-27
This spec is not available in the specification table.
Vibration Resistance
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Electrical Shock Protection Class
Class II conforming to IEC 61140
This spec is not available in the specification table.
Cap/Operator Or Lens Colour
White
This spec is not available in the specification table.
Operator Additional Information
Booted
This spec is not available in the specification table.
Component Name
XACB
This spec is not available in the specification table.
Operating Travel
16 mm
This spec is not available in the specification table.
产品描述
¥ 59.04
数量:
/ EA
This item is sold by0
Schneider Electric
