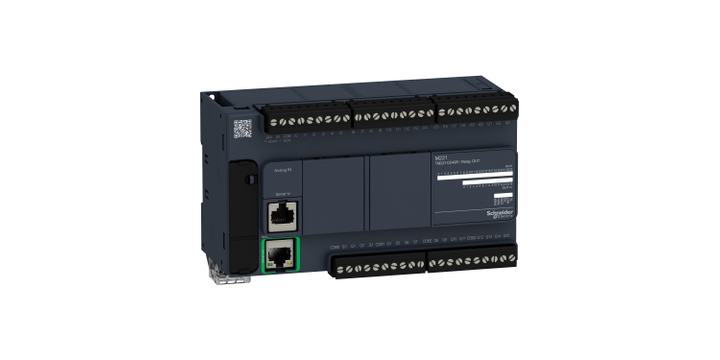

施耐德电气 TM221CE40R 逻辑控制器、Modicon M221、40 Io、继电器、以太网

View Brand

施耐德电气 TM221CE40R 逻辑控制器、Modicon M221、40 Io、继电器、以太网

品牌:	SCHNEIDER ELECTRIC
模型:	TM221CE40R

技术数据表

Environmental disclosure

Specifications

View other Programmable Logic Controllers dimensions or variations

Product Or Component Type

Logic controller

Range Of Product

Modicon M221

Standards

IEC 61131-2 UL 508 CAN/CSA C22.2 No. 213 IACS E10 ANSI/ISA 12-12-01

Ip Degree Of Protection

IP20 with protective cover in place

Relative Humidity

10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage)

Ambient Air Temperature For Operation

-10…55 °C (horizontal installation) -10…35 °C (vertical installation)

Ambient Air Temperature For Storage

-25…70 °C

Operating Altitude

0...2000 m

Product Certifications

DNV-GL EAC ABS cULus LR RCM CE UKCA cULus HazLoc

[Us] Rated Supply Voltage

100...240 V AC

Local Signalling

1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED per channel (green) for I/O state 1 LED (green) for SL Ethernet network activity (green) for ACT Ethernet network link (yellow) for Link (Link Status)

Mounting Support

Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit

Pollution Degree

<= 2

Discrete Input Number

24, discrete input conforming to IEC 61131-2 Type 1

Discrete Input Voltage

24 V

Discrete Input Current

7 mA for discrete input 5 mA for fast input

Input Impedance

3.4 kOhm for discrete input 100 kOhm for analog input 4.9 kOhm for fast input

Realtime Clock

With

Discrete Input Logic

Sink or source (positive/negative)

Analogue Input Number

2 at 0...10 V

Discrete Output Number

16 relay

Discrete Output Current

2 A

Sensor Power Supply

24 V DC at 250 mA supplied by the controller

Insulation

Between input and internal logic at 500 V AC Non-insulated between analogue input and internal logic Non-insulated between analogue inputs Between supply and ground at 1500 V AC Between sensor power supply and ground at 500 V AC Between input and ground at 500 V AC Between output and ground at 1500 V AC Between supply and internal logic at 2300 V AC Between sensor power supply and internal logic at 500 V AC Between output and internal logic at 2300 V AC Between Ethernet terminal and internal logic at 500 V AC Between supply and sensor power supply at 2300 V AC

Network Frequency

50/60 Hz

Communication Port Protocol

USB port: USB - SoMachine-Network Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network Ethernet

Mechanical Durability

20000000 cycles for relay output

Electrical Durability

100000 cycles AC-12, 120 V, 240 VA, resistive 100000 cycles AC-12, 240 V, 480 VA, resistive 300000 cycles AC-12, 120 V, 80 VA, resistive 300000 cycles AC-12, 240 V, 160 VA, resistive 100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, inductive 100000 cycles AC-15, cos phi = 0.35, 240 V, 120 VA, inductive 300000 cycles AC-15, cos phi = 0.35, 120 V, 18 VA, inductive 300000 cycles AC-15, cos phi = 0.35, 240 V, 36 VA, inductive 100000 cycles AC-14, cos phi = 0.7, 120 V, 120 VA, inductive 100000 cycles AC-14, cos phi = 0.7, 240 V, 240 VA, inductive 300000 cycles AC-14, cos phi = 0.7, 120 V, 36 VA, inductive 300000 cycles AC-14, cos phi = 0.7, 240 V, 72 VA, inductive 100000 cycles DC-12, 24 V, 48 W, resistive 300000 cycles DC-12, 24 V, 16 W, resistive 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms) 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)

Marking

Environmental Characteristic

Ordinary and hazardous location

Maximum Power Consumption In Va

70 VA at 100...240 V with max number of I/O expansion module 41 VA at 100...240 V without I/O expansion module

Shock Resistance

98 m/s² for 11 ms

Vibration Resistance

3.5 mm at 5…8.4 Hz on symmetrical rail 3.5 mm at 5…8.4 Hz on panel mounting 1 gn at 8.4…150 Hz on symmetrical rail 1 gn at 8.4…150 Hz on panel mounting

Resistance To Electrostatic Discharge

8 kV in air conforming to IEC 61000-4-2 4 kV on contact conforming to IEC 61000-4-2

Resistance To Fast Transients

2 kV (power lines) conforming to IEC 61000-4-4 2 kV (relay output) conforming to IEC 61000-4-4 1 kV (I/O) conforming to IEC 61000-4-4 1 kV (Ethernet line) conforming to IEC 61000-4-4 1 kV (serial link) conforming to IEC 61000-4-4

Immunity To Microbreaks

10 ms

Supply Voltage Limits

85…264 V

Protection Type

Without protection at 5 A

Response Time

35 µs turn-off, I2...I5 terminal(s) for input 10 ms turn-on for output 10 ms turn-off for output 5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input 35 µs turn-on, other terminals terminal(s) for input 5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input 100 µs turn-off, other terminals terminal(s) for input

Communication Service

DHCP client Modbus TCP client Ethernet/IP adapter Modbus TCP server Modbus TCP slave device

Backup Time

1 year at 25 °C (by interruption of power supply)

Clock Drift

<= 30 s/month at 25 °C

Voltage State 1 Guaranteed

>= 15 V for input

Voltage State 0 Guaranteed

<= 5 V for input

Output Voltage Limits

125 V DC 277 V AC

Integrated Connection Type

USB port with mini B USB 2.0 connector Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface Ethernet with RJ45 connector

Surge Withstand

2 kV power lines (AC) common mode conforming to IEC 61000-4-5 2 kV relay output common mode conforming to IEC 61000-4-5 1 kV I/O common mode conforming to IEC 61000-4-5 1 kV shielded cable common mode conforming to IEC 61000-4-5 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5 1 kV relay output differential mode conforming to IEC 61000-4-5 0.5 kV power lines (DC) common mode conforming to IEC 61000-4-5

Resistance To Electromagnetic Fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3

Electromagnetic Emission

Conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15…0.5 MHz conforming to IEC 55011 Conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5…300 MHz conforming to IEC 55011 Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011 Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011 Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 200…1000 MHz conforming to IEC 55011

Inrush Current

40 A

Switching Frequency

20 switching operations/minute with maximum load

Electrical Connection

removable screw terminal block for inputs removable screw terminal block for outputs terminal block, 3 terminal(s) for connecting the 24 V DC power supply connector, 4 terminal(s) for analogue inputs Mini B USB 2.0 connector for a programming terminal

Discrete Output Type

Relay normally open

Reset Time

1 s

Maximum Cable Distance Between Devices

Shielded cable: <10 m for fast input Unshielded cable: <30 m for output Unshielded cable: <30 m for digital input Unshielded cable: <1 m for analog input

Port Ethernet

10BASE-T/100BASE-TX 1 port with 100 m copper cable

Discrete I/O Number

Discrete Input Voltage Type

Resistance To Magnetic Fields

30 A/m 50/60 Hz conforming to IEC 61000-4-8

Resistance To Conducted Disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Storage Altitude

0…3000 m

Discrete Output Voltage

5...125 V DC 5...250 V AC

Maximum Number Of I/O Expansion Module

7 (local I/O-Architecture) 14 (remote I/O-Architecture)

Power Supply Output Current

0.52 A 5 V for expansion bus 0.24 A 24 V for expansion bus

Analogue Input Resolution

10 bits

Lsb Value

10 mV

Conversion Time

1 ms per channel + 1 controller cycle time for analogue input analog input

Permitted Overload On Inputs

+/- 30 V DC for 5 min (maximum) for analog input +/- 13 V DC (permanent) for analog input

Configurable Filtering Time

0 ms for input 3 ms for input 12 ms for input

Maximum Current Per Output Common

7 A

Absolute Accuracy Error

+/- 1 % of full scale for analog input

Memory Capacity

256 kB for user application and data RAM with 10000 instructions 256 kB for internal variables RAM

Data Backed Up

256 kB built-in flash memory for backup of application and data

Data Storage Equipment

2 GB SD card (optional)

Battery Type

BR2032 or CR2032X lithium non-rechargeable

Execution Time For 1 Kinstruction

0.3 ms for event and periodic task

Execution Time Per Instruction

0.2 µs Boolean

Exct Time For Event Task

60 µs response time

Maximum Size Of Object Areas

8000 %MW memory words 255 %TM timers 512 %KW constant words 255 %C counters 512 %M memory bits

Regulation Loop

Adjustable PID regulator up to 14 simultaneous loops

Counting Input Number

4 fast input (HSC mode) at 100 kHz 32 bits

Counter Function

Single phase A/B Pulse/direction

Supply

(serial)serial link supply: 5 V, <200 mA

Transmission Rate

1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 480 Mbit/s for USB

Minimum Load

1 mA at 5 V DC for relay output
