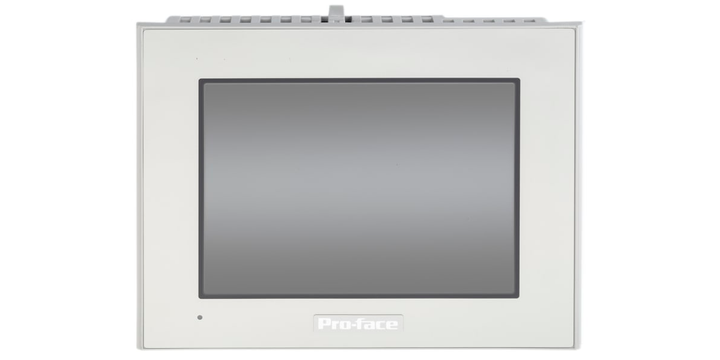

SCHNEIDER ELECTRIC/施耐德电气 PFXGP4301TADC 5.7 英寸，TFT 液晶显示屏，320 X 240 像素 - PRO-FACE GP4000 系列 TFT 触摸屏 HMI
SCHNEIDER ELECTRIC/施耐德电气 PFXGP4301TADC 5.7 英寸，TFT 液晶显示屏，320 X 240 像素 - PRO-FACE GP4000 系列 TFT 触摸屏 HMI
Specifications
Please select at least one specification below.
Display Type
TFT LCD
Product Range
TFT
Supply Voltage
24 V dc
IP Rating
IP65
Minimum Operating Temperature
0°C
Maximum Operating Temperature
+55°C
Number of Ports
6
Display Resolution
320 x 240 pixels
Display Size
5.7 in
Display Colour
Colour
Width
59.5 mm
This spec is not available in the specification table.
Length
169.5 mm
This spec is not available in the specification table.
Depth
137 mm
This spec is not available in the specification table.
Dimensions
169.5 x 59.5 x 137 mm
This spec is not available in the specification table.
Manufacturer Series
GP4000
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Port Type
COM 1 Serial RS-232C, COM 2 RS-422/RS-485, Ethernet, SD Card, USB 2.0 (Mini-B), USB 2.0 Type-A
This spec is not available in the specification table.
Onboard Memory
16 MB
This spec is not available in the specification table.
Backlighting
Yes
This spec is not available in the specification table.
Manufacturer Part No.
PFXGP4301TADC
This spec is not available in the specification table.
产品描述
¥ 16803.69
数量:
/ EA
