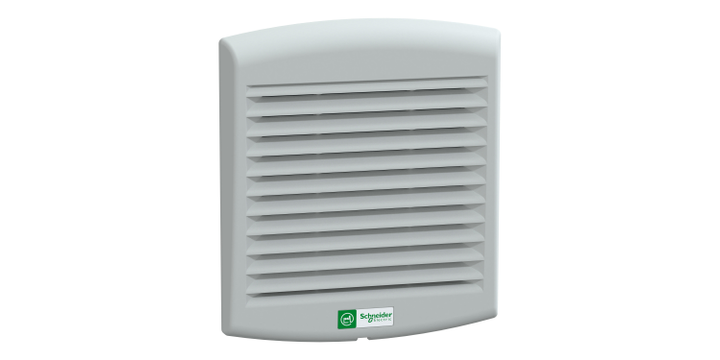

SCHNEIDER ELECTRIC/施耐德电气 NSYCVF85M24DPF CLIMASYS 强制通风。IP54,85M3/H,24V DC,带出口格栅和过滤器 G2
SCHNEIDER ELECTRIC/施耐德电气 NSYCVF85M24DPF CLIMASYS 强制通风。IP54,85M3/H,24V DC,带出口格栅和过滤器 G2
产品描述

Schneider Electric NSYCVF85M24DPF Climasys Forced Vent. IP54, 85m3/h, 24V Dc, With Outlet Grille and Filter G2

ClimaSys CV Axial motor ventilator. 24V DC 50Hz or 60Hz. 7.6W 50 Hz. Free flow rate with standard filter of 80 m3/h at 50 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.

Main

  • Range: ClimaSys
  • Product name: ClimaSys CV
  • Product or Component Type: Fan
  • Type of Filter: Standard
  • Flow Rate: Free flow rate with standard filter: 80 m3/h
  • Rated Supply Voltage: 10...27.6 V (Us)
  • Input Voltage: 24 V DC

Complementary:

  • Absorbed Power: 7.6 W
  • Rated Current: 0.3 A (In)
  • Noise Level (dB): 46…49 dB
  • Bearing Type: Ball
  • Height: External: 170 mm
  • Width: External: 150 mm
  • Depth: External: 62 mm
  • Cut-Out Dimensions: 125 x 125 mm
  • Net Weight: 0.48 kg
  • Material: Outlet grille: injected thermoplastic (ASA PC)
  • Colour: Outlet grille: grey (RAL 7035)
  • Ambient Air Temperature for Operation: -10…70 °C
  • Ambient Air Temperature for Storage: -40…70 °C
  • Maximum Pressure: 50 Pa flow rate 0 m³/h
  • Connections - Terminals: Cable
  • IP Degree of Protection: IP54
  • Device Composition:
    • 1 axial motor
    • 2 protective grille: on the front and rear surfaces
    • 1 filter: front of axial motor
    • 1 outlet grille: front
    • 1 cut-out template
    • 1 power cord
  • Condition of Use:
    • Overfrequent filter replacement should be avoided
    • Outside temperature must be 5 °C lower than inside temperature
    • Surrounding environment must be relatively clean
    • Filter must be cleaned and replaced regularly
    • Flow Rates Depend on the Work Point, see ProClima software
