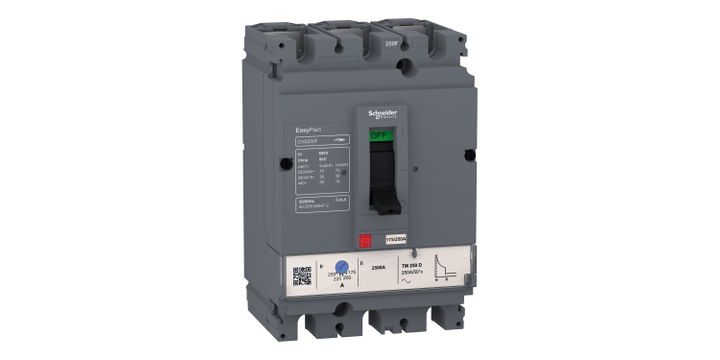

施耐德电气 LV510336 Easypact CVS100F 断路器，36 Ka @ 415 Vac，3P 3d，TM-D 80 a 脱扣单元
Specifications
Please select at least one specification below.
Ambient air temperature for operation
-25…70 °C
Poles Description
3P
Protected Poles Description
3D
Network Type
AC
[In] Rated Current
80 A at 40 °C
Network Frequency
50/60 Hz
Standards
EN 60947-2
IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage
8 kV conforming to EN/IEC 60947-2
Ip Degree Of Protection
IP40
Pollution Degree
3 conforming to IEC 60664-1
Ambient Air Temperature For Storage
-50…85 °C
Trip Unit Rating
80 A at 40 °C
Trip Unit Technology
Thermal-magnetic
This spec is not available in the specification table.
Control Type
Toggle
This spec is not available in the specification table.
Mounting Mode
Fixed
This spec is not available in the specification table.
Trip Unit Name
TM-D
This spec is not available in the specification table.
Device Short Name
CVS100F
This spec is not available in the specification table.
Product Or Component Type
Circuit breaker
This spec is not available in the specification table.
Range
EasyPact
This spec is not available in the specification table.
Product Name
EasyPact CVS
This spec is not available in the specification table.
Device Application
Distribution
This spec is not available in the specification table.
Connection Pitch
35 mm
This spec is not available in the specification table.
Utilisation Category
Category A
This spec is not available in the specification table.
Mounting Support
Backplate
This spec is not available in the specification table.
Mechanical Durability
30000 cycles
This spec is not available in the specification table.
Electrical Durability
12000 cycles 415 V In conforming to IEC 60947-2
This spec is not available in the specification table.
Product Certifications
GOST
IEC
This spec is not available in the specification table.
Protection Type
Short-circuit protection (magnetic)
Overload protection (thermal)
This spec is not available in the specification table.
Upside Connection
Front
This spec is not available in the specification table.
Downside Connection
Front
This spec is not available in the specification table.
Electrical Shock Protection Class
Class II
This spec is not available in the specification table.
Depth
86 mm
This spec is not available in the specification table.
Earth Leakage Protection (Vigi Add On)
Without
This spec is not available in the specification table.
Compatibility Code
CVS100
This spec is not available in the specification table.
[Ics] Rated Service Breaking Capacity
18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
This spec is not available in the specification table.
Contact Position Indicator
Yes
This spec is not available in the specification table.
Connections - Terminals
Screw connection
This spec is not available in the specification table.
Height
161 mm
This spec is not available in the specification table.
Thermal Protection Adjustment Range
56…80 A
This spec is not available in the specification table.
[Icu] Breaking Capacity
36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
This spec is not available in the specification table.
Breaking Capacity Code
F
This spec is not available in the specification table.
Long Time Pick-Up Adjustment Type Ir
Adjustable
This spec is not available in the specification table.
Long Time Pick-Up Adjustment Range
0.7...1 x In
This spec is not available in the specification table.
Long Time Delay Adjustment Type
Fixed
This spec is not available in the specification table.
Instantaneous Pick-Up Adjustment Type Ii
Fixed
This spec is not available in the specification table.
Instantaneous Pick-Up Adjustment Range
640 A
This spec is not available in the specification table.
产品描述
¥ 1175.04
