施耐德电气 LTMR100EFM 电机控制器、Tesys T、电机管理、以太网/IP、Modbus/TCP、6 个输入、3 个输出、5 至 100A、100 至 240VAC

View Brand

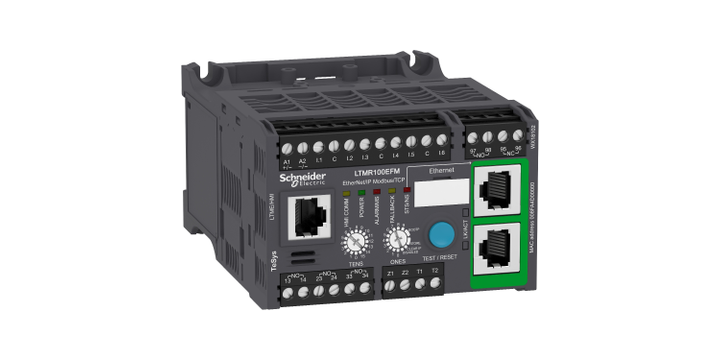

施耐德电气 LTMR100EFM 电机控制器、Tesys T、电机管理、以太网/IP、Modbus/TCP、6 个输入、3 个输出、5 至 100A、100 至 240VAC

品牌:	SCHNEIDER ELECTRIC
模型:	LTMR100EFM

技术数据表

Environmental disclosure

Specifications

View other Motor Starter dimensions or variations

Operating Temperature

-20…60 °C

Standards and Certifications

CSA C22.2 No 14 EN 60947-4-1 IACS E10 UL 508 IEC 60947-4-1

Width

91 mm

Depth

122.5 mm

[Ui] Rated Insulation Voltage

690 V conforming to EN/IEC 60947-1 690 V conforming to CSA C22.2 No 14 690 V conforming to UL 508

[Uimp] Rated Impulse Withstand Voltage

4 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1 0.8 kV communication circuit conforming to EN/IEC 60947-4-1

Ip Degree Of Protection

IP20

Height

61 mm

Range

TeSys

Product Name

TeSys T

Device Short Name

LTMR

Device Application

Equipment monitoring and control

Connection Pitch

5.08 mm

Compatibility Code

LTMR

Measurement Current

5…100 A

Connections - Terminals

Control circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24...AWG 14) flexible with cable end Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24...AWG 14) flexible without cable end Control circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24...AWG 14) flexible without cable end Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24...AWG 14) solid without cable end Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24...AWG 14) flexible with cable end Control circuit: connector 2 cable(s) 0.2…1.5 mm² (AWG 24...AWG 14) flexible without cable end Control circuit: connector 2 cable(s) 0.5…1.5 mm² (AWG 24...AWG 14) flexible without cable end Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24...AWG 14) solid without cable end

Overvoltage Category

III

Pollution Degree

Ambient Air Temperature For Storage

-40…80 °C

Operating Altitude

<= 2000 m without derating

Tightening Torque

Control circuit: 0.5…0.6 N.m flat screwdriver 3 mm

Measurement Accuracy

5...15 % earth fault current internal measurement 1 % voltage (100...830 V) 3 % power factor 5 % earth fault current external measurement +/- 30 min/year internal clock 0,02 temperature 5 % active and reactive power 0,02 current

Electromagnetic Compatibility

Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 Radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3 Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 Voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11 Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 Temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5 Temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5 Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 Relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 Relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 Control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5

Associated Fuse Rating

4 A gG for output 0.5 A gG for control circuit

Maximum Operating Rate

1800 cyc/h

Product Certifications

C-Tick ABS UL DNV NOM RINA RMRoS BV LROS (Lloyds register of shipping) KERI EAC CCC CSA ATEX GL

Protective Treatment

12 x 24 hour cycles conforming to EN/IEC 60068-2-30 48 h conforming to EN/IEC 60070-2-11 TH conforming to EN/IEC 60068

Mechanical Robustness

Vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6 Vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6 Shocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27

Fire Resistance

650 °C conforming to EN/IEC 60695-2-12 960 °C conforming to UL 94

Logic Input Number

Input Current

3.1 mA at 100 V 7.5 mA at 240 V

Current State 0 Guaranteed

Logic input: 0...40 V and <= 15 mA for 25 ms

Current State 1 Guaranteed

Logic input: 79...264 V and >= 2 mA for 25 ms

Maximum Output Switching Frequency

2 Hz

Contacts Type And Composition

1 NO + 1 NC fault signal 3 NO

Metering Type

Phase current I1, I2, I3 RMS Temperature Earth-fault current Average current Iavg Imbalance current

[Us] Rated Supply Voltage

100...240 V AC 50/60 Hz

Supply Voltage Limits

93.5…264 V AC

Protection Type

Reverse polarity protection Overload Phase unbalance Overload (long time) Thermal protection Power factor variation Thermal overload protection Locked rotor Earth-leakage protection Load fluctuation Phase failure

Current Consumption

8...62.8 mA

Load Current

5 A at 250 V AC for logic output 5 A at 30 V DC for logic output

Web Services

Web server

Communication Port Protocol

Modbus TCP/EtherNet/IP

Bus Type

Ethernet IEEE 802.3 interface, addressing 0...159, transmission rate 10...100 Mbit/s, RJ45 with 2 shielded twisted pairs

Short-Circuit Withstand

100 kA conforming to EN/IEC 60947-4-1

Network And Machine Diagnosis Type

Waiting time after overload tripping Motor control command recording Trip context information Phase fault and earth fault trip counters Starting current and time Trip history information Fault recording Event recording Remaining operating time before overload tripping Running hours counter/operating time

Permissible Power

480 VA (AC-15), Ie = 2 A, 500000 cycles (output) 30 W (DC-13), Ie = 1.25 A, 500000 cycles (output)

产品描述

¥ 13483.59
