SCHNEIDER ELECTRIC/施耐德电气 LA4DA2U TESYS DECA，抑制器模块，RC 电路，110...240V 交流
产品描述

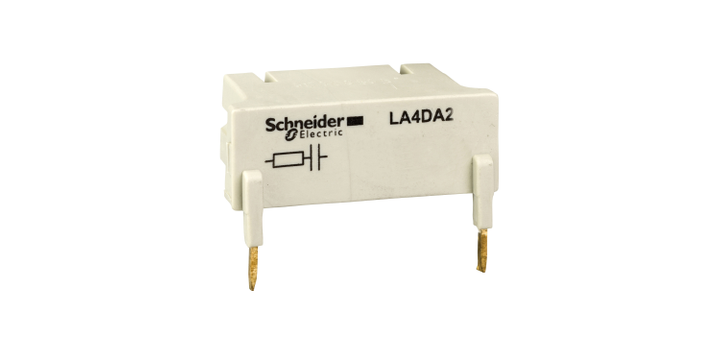

Schneider Electric LA4DA2U Tesys Deca, Suppressor Module, Rc Circuit, 110...240V Ac
TeSys Deca suppressor module, for LC.D80-D150 (3P), LC.D40-D115 (4P) contactors. To be used with 110-240V AC control circuits, it provides RC protection limiting the transient voltage to 3 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Green Premium compliant (RoHS/REACh).
Main
- Range: TeSys
- Device Short Name: LA4D
- Product or Component Type: Suppressor Module
- Product Compatibility:
- 3P LC1D80...D150
- 4P LC1D80004...D115004
- 4P LC1D40008...D80008
Complementary
- Mounting Location: Top
- Mounting Mode: By Screws
- Suppressor Technology: RC Circuit
- [Uc] Control Circuit Voltage: 110...240 V AC 50/60 Hz
- Maximum Peak Voltage: 3 Uc
- Net Weight: 0.018 kg
