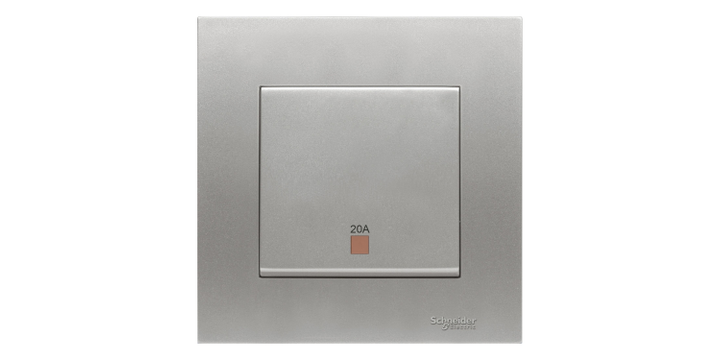

施耐德电气 KB31D20NE_2_AS_G2 Vivace 20A 250V 1Gang 2W 双联开关 带灯,铝制 银色
施耐德电气 KB31D20NE_2_AS_G2 Vivace 20A 250V 1Gang 2W 双联开关 带灯,铝制 银色
技术数据表
Specifications
infotip-icon
View other Light Switches dimensions or variations
Please select at least one specification below.
Width
86 mm
Material
Polycarbonate: grid plate Polycarbonate: surround Nylon: base
Device application
Control
Standards
SS 227 IEC 60669-1 MS IEC 60669-1
Connections -Terminals
Pillar terminals
Height
86 mm
Relative humidity
0…95 %
Number of gangs
1 gang
Colour tint
Aluminium silver
Device mounting
Flush
Switch function
2-way
Rated Current
20 A at 250 V AC, inductive 20 A at 250 V AC, resistive
Clamping connection capacity
<= 2.5 mm²
Environmental characteristic
Indoor use
Device short name
KB31
This spec is not available in the specification table.
Product or component type
Switch
This spec is not available in the specification table.
Range
Vivace
This spec is not available in the specification table.
Network frequency
50 Hz
This spec is not available in the specification table.
Mounting Support
Wall mounted
This spec is not available in the specification table.
Ambient air temperature for operation
-5…40 °C
This spec is not available in the specification table.
Tightening torque
0.4 N.m
This spec is not available in the specification table.
Actuator
Rocker
This spec is not available in the specification table.
[Ue] rated operational voltage
250 V AC
This spec is not available in the specification table.
Projecting depth
8 mm
This spec is not available in the specification table.
Fixing mode
By screw M3.5
This spec is not available in the specification table.
Fixing center
60.3 mm
This spec is not available in the specification table.
Embedding depth
35 mm
This spec is not available in the specification table.
Contacts material
Brass and phosphor bronze
This spec is not available in the specification table.
Terminal identifier
L2 N2 L1 N1
This spec is not available in the specification table.
Pilot light
Neon indicator lamp
This spec is not available in the specification table.
