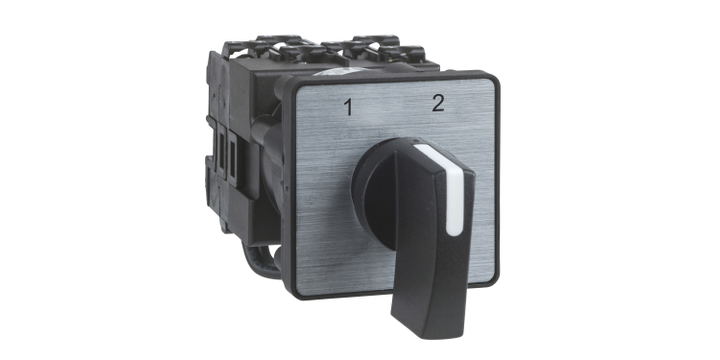

Schneider Electric K1D012UCH Cam Changeover Switch, Harmony K, Ø 22mm, Plastic, 2 Poles, 2 Positions, 30°, 12A, 45x45mm, Metallic Legend, Marked 1/2, 35mm Black Handle

• Product or Component Type: Complete cam switch
• Component Name: K1
• Conventional Free Air Thermal Current (Ith): 12 A
• Product Mounting: Front mounting
• Fixing Mode: Ø 22 mm hole
• Cam Switch Head Type: With front plate 45 x 45 mm
• Type of Operator: Black handle, length = 35 mm
• Rotary Handle Padlocking: Without
• Presentation of Legend: With metallic legend, 1 - 2 black marking
• Cam Switch Function: Changeover switch
• Return: Without
• Off Position: Without Off position
• Poles Description: 2P
• Switching Positions:
• Right: 30°
• Left: 330°
• IP Degree of Protection: IP65 conforming to IEC 60529
• Complementary:
• Switching Angle: 30°
• Rated Insulation Voltage (Ui): 690 V (pollution degree 3) conforming to IEC 60947-1
• Conventional Enclosed Thermal Current (Ithe): 10 A
• Rated Operational Power:
• Various ratings for AC-21, AC-3, AC-23A at different voltages
• Rated Operational Current AC:
• Various ratings for different phases and configurations
• Electrical Durability: 1,000,000 cycles AC-15, AC-21, 500,000 cycles AC-23, AC-3
• Maximum Operating Rate: 2.5 cyc/mn AC-21, AC-23, AC-3, 8.333 cyc/mn AC-15
• Short-Circuit Current: 10,000 A
• Short-Circuit Protection: 16 A cartridge fuse, type gG
• Rated Impulse Withstand Voltage (Uimp): 4 kV in isolating function, 6 kV conforming to IEC 947-1
• Contact Operation: Slow-break, with positive opening
• Electrical Connection: Captive screw clamp terminals, flexible and solid
• Mechanical Durability: 1,000,000 cycles
• CAD Overall Dimensions:
• Width: 45 mm
• Height: 50 mm
• Depth: 59 mm
• Net Weight: 0.16 kg
• Environment:
• Standards: IEC 60947-3 for power circuit, IEC 60947-5-1 for control circuit, CENELEC EN 50013
• Product Certifications: CSA, UL
• Protective Treatment: TC
• Ambient Air Temperature:
• Operation: -25…55 °C
• Storage: -40…70 °C
• Shock Resistance: 30 gn conforming to IEC 68-2-27
• Vibration Resistance: 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
• Electrical Shock Protection Class: Class II conforming to IEC 536
