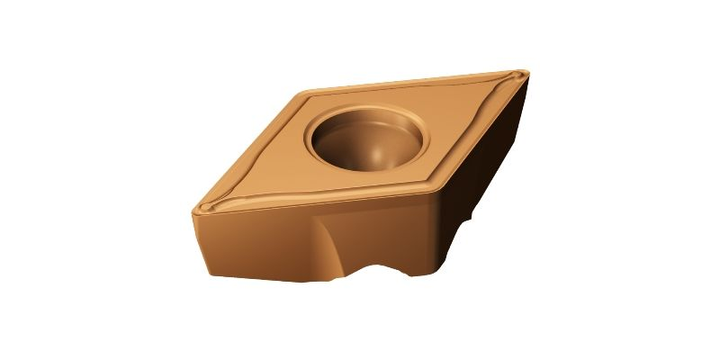

Sandvik Coromant Coroturn® Tr Insert for Turning TR-DC1304-F

Inscribed circle diameter (IC)

11 mm

Insert size and shape (CUTINTSIZESHAPE)

CoroTurn TR DC13

Insert shape code (SC)

D

Cutting edge effective length (LE)

12.6 mm

Corner radius (RE)

0.397 mm

Wiper edge property (WEP)

false

Hand (HAND)

N

Grade (GRADE)

1125

Substrate (SUBSTRATE)

HC

Coating (COATING)

PVD TIALN+ALCR2O3

Insert thickness (S)

5.525 mm

Clearance angle major (AN)

7 deg

Weight of item (WT)

0.009 kg

Sensor embedded property (SEP)

0

Life cycle state (LCS)

Released

Release pack id (RELEASEPACK)

08.2
