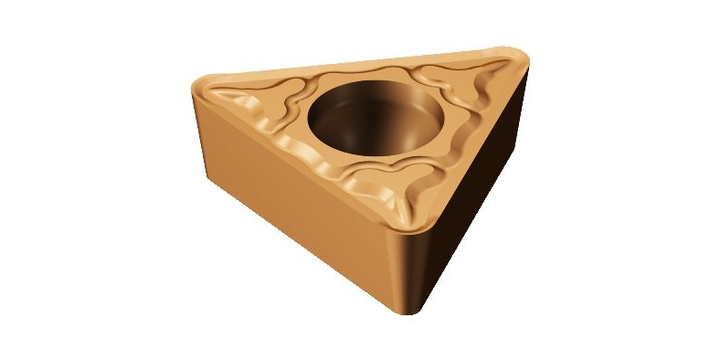

Sandvik Coromant Coroturnⓡ 111 Insert for Turning TPMT 09 02 02-MF

Inscribed circle diameter (IC)

5.556 mm

Insert shape code (SC)

T

Cutting edge effective length (LE)

9.699 mm

Corner radius (RE)

0.2 mm

Wiper edge property (WEP)

false

Hand (HAND)

N

Grade (GRADE)

1125

Substrate (SUBSTRATE)

HC

Coating (COATING)

PVD TIALN+ALCR2O3

Insert thickness (S)

2.381 mm

Clearance angle major (AN)

11 deg

Weight of item (WT)

0.001 kg

Sensor embedded property (SEP)

0

Life cycle state (LCS)

Released

Release pack id (RELEASEPACK)

08.
