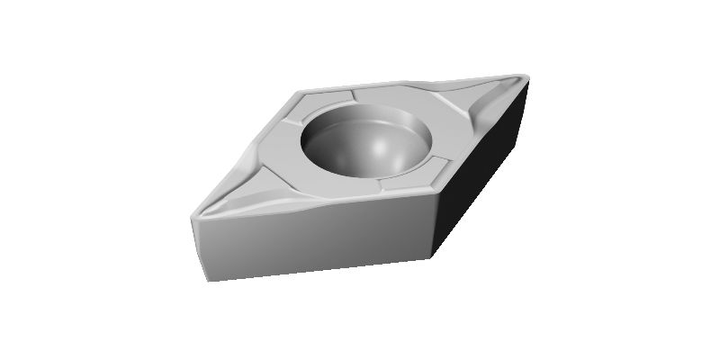

Sandvik Coromant Coroturnⓡ 107 Insert for Turning DCMT 11 T3 02-KF

Insert size and shape (CUTINTSIZESHAPE)

DC11T3

Inscribed circle diameter (IC)

9.525 mm

Insert shape code (SC)

D

Cutting edge effective length (LE)

11.428 mm

Corner radius (RE)

0.2 mm

Wiper edge property (WEP)

false

Hand (HAND)

N

Grade (GRADE)

H13A

Substrate (SUBSTRATE)

HW

Insert thickness (S)

3.969 mm

Clearance angle major (AN)

7 deg

Weight of item (WT)

0.005 kg

Sensor embedded property (SEP)

0

Life cycle state (LCS)

Released

Release pack id (RELEASEPACK)

98.1
