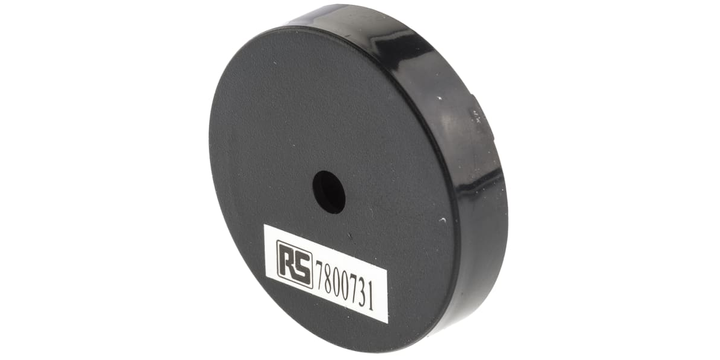

Rs Pro 7800731 90dB 通孔连续外部压电蜂鸣器,30 X 7.5mm,交流最小值 1V,交流最大值 30V
Rs Pro 7800731 90dB 通孔连续外部压电蜂鸣器,30 X 7.5mm,交流最小值 1V,交流最大值 30V
品牌:
RS Pro
模型:
7800731
技术数据表
Specifications
infotip-icon
View other Piezo Buzzers dimensions or variations
Please select at least one specification below.
Mounting Type
Through Hole
Height
7.5 mm
Dimensions
30 x 7.5 mm
Diameter
30 mm
Drive Type
External
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+60°C
Minimum Supply Voltage
1V ac
Maximum Supply Voltage
30V ac
Sound Level
90 dB
Tone Type
Continuous
Maximum Frequency
3.3 kHz
Supply Current
3 mA
Minimum Frequency
2300 Hz
