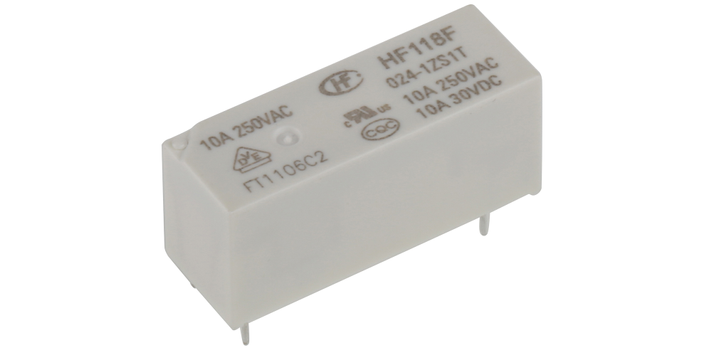

RS PRO/RS专业版 476775 PCB 安装功率继电器,24V 直流线圈,10A 开关电流,SPDT
RS PRO/RS专业版 476775 PCB 安装功率继电器,24V 直流线圈,10A 开关电流,SPDT
品牌:
RS Pro
模型:
476775
技术数据表
Specifications
infotip-icon
View other Power Relay dimensions or variations
Please select at least one specification below.
Length
28.5 mm
Application
Power
Mounting Type
PCB Mount
Depth
10.1 mm
Height
12.5 mm
Contact Material
Silver Alloy
Contact Configuration
SPDT
Coil Voltage
24 V dc
Standards Met
CQC CQC04001011425, RoHS Compliant, UL E133481, VDE File No.: 40010480
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+85°C
Terminal Type
Through Hole
Maximum Switching Voltage AC
440 V ac
Maximum Switching Voltage DC
125 V dc
Coil Power
290 mW
Coil Resistance
2.35 Kilo Ohm
Isolation Coil To Contact
5 kV ac
Maximum Switching Power DC
300 W
Switching Current
10 A
Maximum Switching Power AC
2.5 kVA
Number of Poles
1
This spec is not available in the specification table.
Life
100000 (Electrical) cycles, 10000000 (Mechanical) cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
