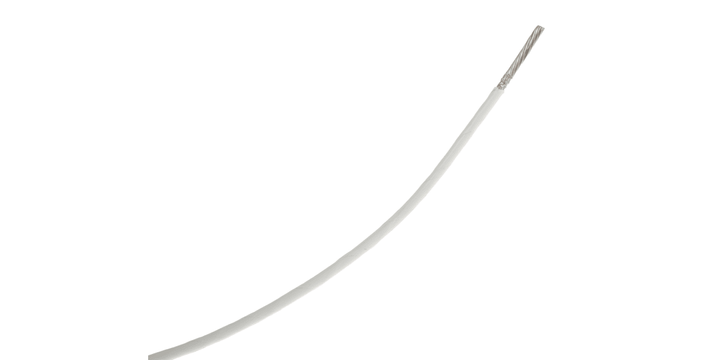

RS PRO/RS专业版 1113146 白色 1.3 MM² 连接线，16 AWG，19/0.3 MM，100M，聚酰胺绝缘（1 卷 100 米）

View Brand

RS PRO/RS专业版 1113146 白色 1.3 MM² 连接线，16 AWG，19/0.3 MM，100M，聚酰胺绝缘（1 卷 100 米）

品牌:	RS Pro
模型:	1113146

技术数据表

RS Pro Datasheet

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021

Specifications

View other Electrical Wire dimensions or variations

Length

100 m

Voltage Rating

600 V ac

Specification Met

EN 2084, EN 2267-009, FAR 25-869

Sheath Colour

White

Insulation Material

Polyamide

American Wire Gauge

16 AWG

Minimum Operating Temperature

-65°C

Maximum Operating Temperature

+260°C

Outer Diameter

1.92 mm

Number of Strands

Size of Strands

0.3 mm

Conductor Material

Nickel Plated Copper

Core Strands

19/0.3 mm

Cable Type

Airframe

Cable Shape

Single Core

产品描述

¥ 3155.10
