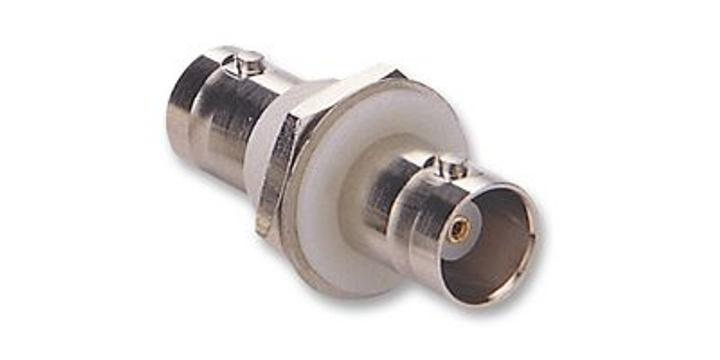

Multicomp Pro MP-13-29-7 适配器，Bnc 插孔，Bnc 插孔，50OHM
品牌: | MULTICOMP PRO |
模型: | MP-13-29-7 |
Specifications
Please select at least one specification below.
Connector Type
Intra Series Coaxial
Material
Brass with Silicone Gaskets
Impedance
50 ohm
Contact Plating
Gold Plated Contacts
Connector Mounting
Bulkhead Mount
Min Operating Temperature
-65°C
Adapter Body Style
Straight Bulkhead Adapter
Max Operating Temperature
165°C
Frequency Max
4 GHz
Working Voltage
500 V
Convert From Gender
Jack
Convert To Gender
Jack
Convert From Coax Type
BNC
Convert To Coax Type
BNC
Contact Resistance
1.5 mohm
This spec is not available in the specification table.
Body Plating
Nickel
This spec is not available in the specification table.
Rohs Compliant
YES
This spec is not available in the specification table.
产品描述
¥ 65.17
数量:
/ EA
This item is sold by
SG-7425082168
