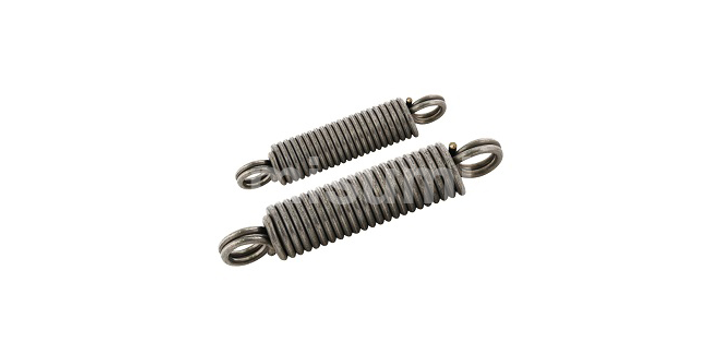

Misumi C-WAWT6-20 拉伸弹簧重载，双圆钩 O.D.5-14
品牌: | MISUMI |
模型: | C-WAWT6-20 |
Specifications
Please select at least one specification below.
Outer Diameter
6
mm
Allowable Load (Configurable Range)
30.01~60.00 N
Max. Load
33.15 N
Wire Diameter
1
mm
Free Length
20
mm
Length of Spring Used L+F
23.7
mm
Initial Tension
8.6 N
Standard Spring Constant
6.57 N/mm
Max. Deflection
3.7 mm
Hook Opposing Angle
180° (2 Layers)
产品描述
¥ 2.23
数量:
/ EA
Stock:
70 EA 库存
In Seller's Warehouse
This item is sold by
SG-4887073424
