Introduction:

This triplex (three plunger rods) positive displacement, reciprocating plunger pump is constructed with a brass manifold, 304 stainless steel valve assemblies, solid ceramic plunger and standard NBR (Buna-N) seals and O-rings.

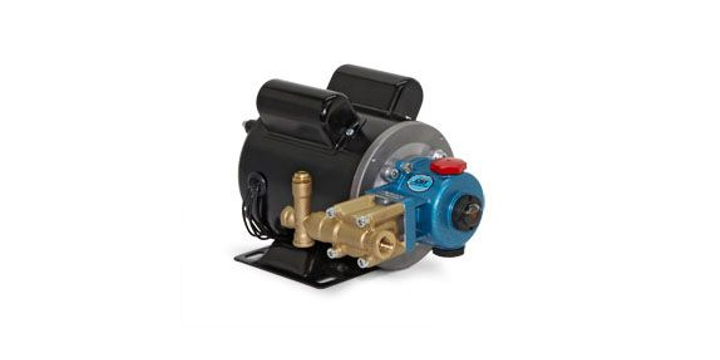

The 1CX is the perfect fit for misting applications that require 0.5 GPM or less. With seals that run thousands of hours before requiring any servicing, the 1CX is small but has the same life expectancy as our industrial products. This ultra-compact, direct-drive single plunger misting-cooling pump includes a pressure regulator for maintaining pressure with multiple nozzles. 1CX Series pumps couple to custom-designed 1/4 or 1/2 HP single-phase 60 Hz motors to fit in small spaces. There is a 50 Hz motor available as well. An optional pulse hose reduces pulsation and lowers the amp draw.

Technical Specifications:

Max Flow:0.5 gpm / 1.9 lpm

Max Pressure: 1250 PSI

Inlet Port Size: 3/8"

NPT(F)Discharge Port Size: 1/4"

Electric Motor: ½ HP, 230V, Single Phase, 50Hz

Drive Type(s): Direct

Material: Brass

Unit includes Regulator, and arrives assembled and with Pulse Hose.
