Testo 816-1 Sound Level Meter
Brand:
Testo
Model:
Testo 816-1
Technical Data Sheets
Product Description

Order Code: 0563 8170

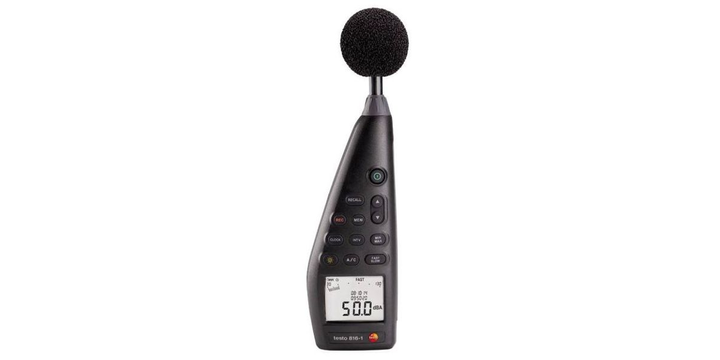

testo 816-1 – Sound level meter
Sound level measurement with integrated data storage


Features
- Sound level measurement acc. to IEC 61672-1 class 2 and ANSI S1.4 Type 2
- Frequency weighting A and C
- Integrated data storage for up to 31000 measurement values
- Software for data management and long-term measurement
- Switchable time weighting Fast/Slow
- Bar graph display
- Backlit display
- AC and DC output for the connection of other instruments


Technical data testo 816-1
Measuring range: 30 to 130 dB
Frequency range: 20 Hz to 8 kHz
Accuracy ±1 digit: ±1.4 dB (under reference conditions: 94 dB, 1 kHz)
Resolution: 0.1 dB
Frequency weighting: A / C
Microphone: ½ inch
Measuring rate: 0.5 s
Dynamic range: 100 dB
Data storage: Internal (in instrument):
Single value memory: 99 data sets
Measurement series memory: 31,000 data sets
External (via PC software):
Online measurement: max. 99,999 data sets
Recording rate: Offline measurement: min: 1 sec, max: 1 min
Online measurement: min: 0.1 sec, max: 30 sec
Operating temperature: 0 to +40 °C
Time weighting: FAST 125 ms / SLOW 1 sec
AC/DC output: AC: 1 V RMS at full scale
DC: 10 mV/dB




S$ 1,290.00
(exc. GST)
S$ 1,406.10
(inc. GST)
Quantity:
EA
