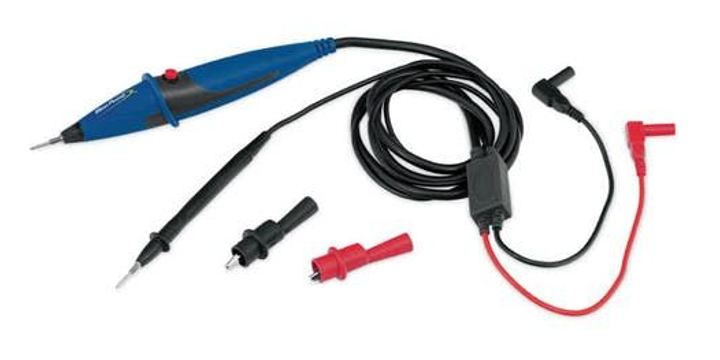

Loadpro Circuit Tester EECT180

Features

• LOADpro® quickly finds problems like high-corrosive resistance, shorts to ground and open circuits

• Works with any DMM with standard banana plugs

• Test leads are 60" in length

• For use on circuits up to 28.5 V

• Do not use on computer ECM input circuits

• LOADpro® performs a voltage drop test with the press of a button

• Steady pin probe tips—a small recess allows the probe to sit on the connector pin

• Pressing the switch applies a load of 40mA per volt across the circuit (example: 40 mA x 12 V = .48 A of load)

• Used for automotive, heavy-duty, marine, RV and equipment

• Includes the ESI182 Troubleshooting Guide

Specifications

Country Of Origin; CHN
