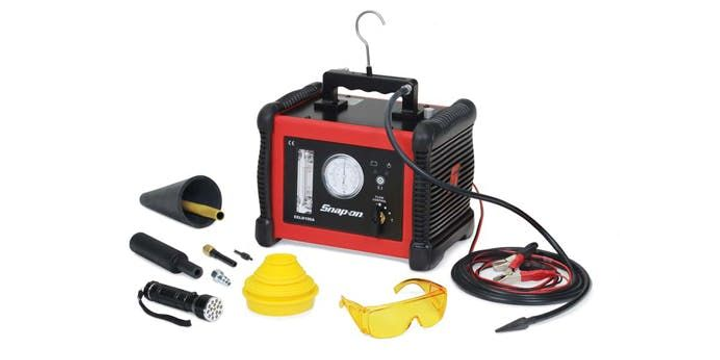

Evap Smoke Machine EELD100A

Features

• Finds leaks

• Contains Diagnostic Smoke® technology for EVAP testing and general-purpose applications

• UltraTraceUV® non-contaminating dye solution pinpoints leaks that smoke cannot locate alone

• Includes a combination LED and UV light, plus special glasses

• Necessity—Eight of the top 10 emission DTC codes can be diagnosed with this unit

• Smoke solution does not produce an unpleasant odor in the shop

• Variable flow control manually reduces the flow to help pinpoint the exact location of a leak

• Conveniently functions with OEM-specified optional nitrogen, a portable CO2 bottle (ships empty) or shop air

• Convenient retractable hanger for undercar and underhood use

• Lightweight and compact stores in a large bottom roll cab drawer or hangs with an optional cover to protect from shop dirt

OPTIONAL ACCESSORIES:

• EELD500C02 C02 Bottle and Regulator, EELD500C02 ships empty and needs to be filled at a hardware store

• EELD500CVR Protective Cover

• EELD500-1 Additional 8 oz Bottle of Solution

• EELDGASCAP Gas Cap Adaptor 3 pc

• EELDGASBMW One Gas Cap Adaptor BMW®

Specifications

Power Consumption; 12 V DC, 25 A

Power Supply; 12 V DC

Country Of Origin; CHN

Max. Pressure Input; 170 PSI

Supply Volume; 10 L/MIN

Overall Dimensions, inches (mm); 12 W x 13 D x 12 H (305 W x 229 D x 305 H)

Line Length/Smoke Supply, ft (m); 8 (2.44)

Line Length/Remote Starter, ft (m); 10 (3)

Weight, lb (kg); 11.5 (5.25)

Line Length/Power Supply, ft (m); 8 (2.44)
