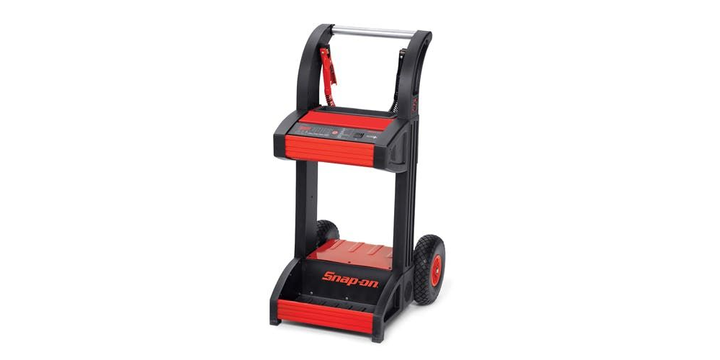

Battery Charger Plus EEBC500A
Features
• PLUS Exclusive flash reprogram power supply maintains consistent OEM-specified voltage up to 100 A for three minutes
• ADAPTIVE Performs a unique charge cycle for each lead-acid battery type: standard, AGM, GEL and deep cycle
• VERSATILE Charges 6 V batteries, 12 V batteries and 24 V battery packs with a 4 A maintain rate, a 15 A fast rate or a 60 A boost mode
• CONVENIENT: Upper and lower battery service tool storage trays
• INTELLIGENT Automatic microprocessor-controlled operation selects algorithm to optimize the cycle without overcharging
• POWERFUL 300 amp engine start with a 20 second crank time at the 12 V setting
• INFORMATIVE In maintain and fast rates, the unit displays the vehicle battery voltage, percent of charge and alternator percent of performance
• STREAMLINED: Higher working-height handle helps relieve back strain with an excellent design that looks like no other charger
• TOUGH 10" foam-filled tires with a C-CLIP retention ride on a solid steel axle
• Technical Support: 866-713-6007
Specifications
Foam-Filled Wheel Size, inches (mm)10 (254)
DC Clamps500
ADC Lead TypeFixedDimensions, L x W x H, inches; 20.4 x 16.5 x 30.5
Input Voltage (rated), V ; AC120
Country Of Origin; MEX
VoltmeterDigitalRectifier; 8 SCR
AC Cord Length, feet (meters); 9 (2.7)
Power Supply Cord; Included
WARNING: This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov
Crank Assist Duty Cycle; 1/36
Outdoor Use; Yes (cULus)
Ventilation; Fan Cooled
Output Currents A DC; 4/15 and 60A
BoostTimer Type; Digital
Continuous Input Current (Max), Amps; 14.6AC
Circuit Breaker; Self-Resetting
Crank Assist Rating, ADC; 300
AC Cord Gauge; 14-3
Weight, lb (kg); 91.8 (41.6)
DC Circuit Breaker; Self-Resetting
Output Voltages V DC; 6/12/24
DC Lead Length, feet (meters); 7' 6" (2.3)
DC Lead Gauge; 4 AWG
Country of Use; North America
