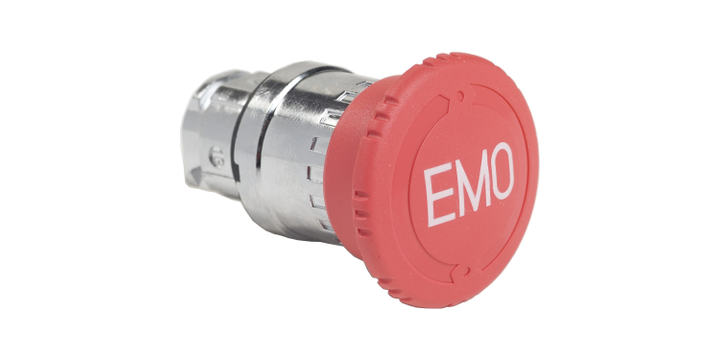

Schneider Electric ZB4BS84430 Emergency Stop Head, Harmony XB4, Switching Off, Metal, Red Mushroom 40mm, 22mm, Trigger Latching Turn to Release, Marked Emo
Schneider Electric ZB4BS84430 Emergency Stop Head, Harmony XB4, Switching Off, Metal, Red Mushroom 40mm, 22mm, Trigger Latching Turn to Release, Marked Emo
Brand: | SCHNEIDER ELECTRIC |
Model: | ZB4BS84430 |
Specifications
Please select at least one specification below.
Range of Product
Harmony XB4
Standard
JIS C8201-5-1
CSA C22.2 No 14
IEC 60947-5-1
GB 14048.5
UL 508
IEC 60947-1
IEC 60364-5-53
IEC 60947-5-4
IEC 60204-1
IEC 60947-5-5
ISO 13850
JIS C8201-1
IP Degree of Protection
IP66 conforming to IEC 60529
IP69
IP69K
Ambient Air Temperature for Operation
-40…70 °C
Mechanical Durability
300000 cycles
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Mounting Diameter
22.5 mm
Shape of Signaling Unit Head
Round
Bezel Material
Chromium plated metal
Head Type
Standard
Device Short Name
ZB4
This spec is not available in the specification table.
Product or Component Type
Head for emergency switching off push-button
This spec is not available in the specification table.
Ambient Air Temperature for Storage
-40…70 °C
This spec is not available in the specification table.
Certifications
DNV
BV
GL
CSA
UL listed
LROS (Lloyds register of shipping)
This spec is not available in the specification table.
IK Degree of Protection
IK06 conforming to IEC 50102
This spec is not available in the specification table.
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
This spec is not available in the specification table.
Electrical Shock Protection Class
Class I conforming to IEC 61140
This spec is not available in the specification table.
Electrical Composition Code
C7 for <4 contacts using single blocks in front mounting
C8 for <4 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting
C10 for <4 contacts using single and double blocks in front mounting
This spec is not available in the specification table.
Protective Treatment
TH
This spec is not available in the specification table.
NEMA degree of Protection
NEMA 13
NEMA 4X
NEMA 4
NEMA 12
This spec is not available in the specification table.
Type of Operator
trigger action and mechanical latching
This spec is not available in the specification table.
Operator Profile
Red mushroom Ø 40 mm, EMO
This spec is not available in the specification table.
CAD Overall Width
40 mm
This spec is not available in the specification table.
CAD Overall Height
40 mm
This spec is not available in the specification table.
CAD Overall Depth
57 mm
This spec is not available in the specification table.
Reset
Turn to release
This spec is not available in the specification table.
Product Description
S$ 62.20
(exc. GST)
S$ 67.80
(inc. GST)
