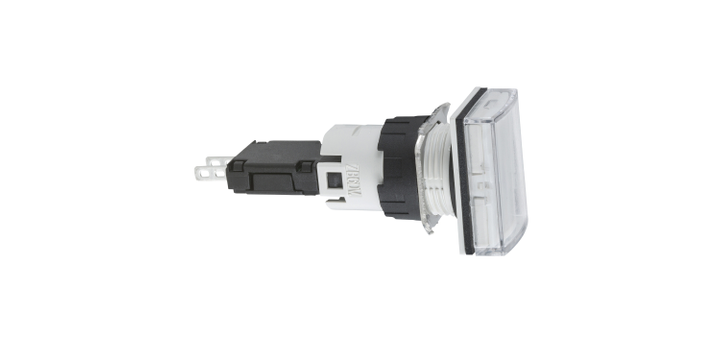

Schneider Electric XB6DV1BB Complete Pilot Light, Harmony XB6, Rectangular White, Plastic, 16mm, Integral Led, 12...24V
Schneider Electric XB6DV1BB Complete Pilot Light, Harmony XB6, Rectangular White, Plastic, 16mm, Integral Led, 12...24V
Brand: | SCHNEIDER ELECTRIC |
Model: | XB6DV1BB |
Specifications
Please select at least one specification below.
Width
24 mm
Depth
57 mm
Standards
EN/IEC 60947-5-1
EN/IEC 60947-5-5
CSA C22.2 No 14
EN/IEC 60947-1
JIS C8201-5-1
JIS C 852
UL 508
JIS C8201-1
Connections - terminals
Faston connectors, connection size: 2.8 x 0.5 mm
Height
18 mm
IP Degree of Protection
IP65 conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
[Us] Rated Supply Voltage
12...24 V AC/DC
Mounting Diameter
16 mm
Shape Of Signaling Unit Head
Rectangular
Cap/Operator Or Lens Colour
White
Current Consumption
15 mA
Product or component type
Complete pilot light
This spec is not available in the specification table.
Range of product
Harmony XB6
This spec is not available in the specification table.
[Ui] rated insulation voltage
250 V (pollution degree 2) conforming to EN/IEC 60947-1
This spec is not available in the specification table.
[Uimp] rated impulse withstand voltage
4 kV conforming to EN/IEC 60947-1
This spec is not available in the specification table.
Ambient air temperature for storage
-40…70 °C
This spec is not available in the specification table.
Product Certifications
UL
GOST
CCC
CSA
This spec is not available in the specification table.
Vibration Resistance
+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
This spec is not available in the specification table.
Resistance To Fast Transients
2 kV conforming to IEC 61000-4-4
This spec is not available in the specification table.
Supply Voltage Limits
6…30 V AC/DC
This spec is not available in the specification table.
Electrical Shock Protection Class
Class II conforming to IEC 61140
This spec is not available in the specification table.
Nema Degree Of Protection
NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94
This spec is not available in the specification table.
Light Source
LED
This spec is not available in the specification table.
Bulb Base
Integral LED
This spec is not available in the specification table.
Terminals Description Iso N°1
(+ -)PL
This spec is not available in the specification table.
Signalling Type
Steady
This spec is not available in the specification table.
Light Block Supply
Direct
This spec is not available in the specification table.
Surge Withstand
1 kV direct contact conforming to IEC 61000-4-5
2 kV in free air conforming to IEC 61000-4-5
This spec is not available in the specification table.
Resistance To Electromagnetic Fields
10 V/m conforming to IEC 61000-4-3
This spec is not available in the specification table.
Electromagnetic Emission
Class B conforming to EN 55011
This spec is not available in the specification table.
Bezel Material
Plastic
This spec is not available in the specification table.
Product Description
S$ 26.40
(exc. GST)
S$ 28.78
(inc. GST)
Quantity:
EA
