Schneider Electric XB5FVB5C0 XB5F, Flush Mount Orange Led Pilot Light, 30.5mm Cutout, IP66, IP67, Round, 24V ac/dc

View Brand

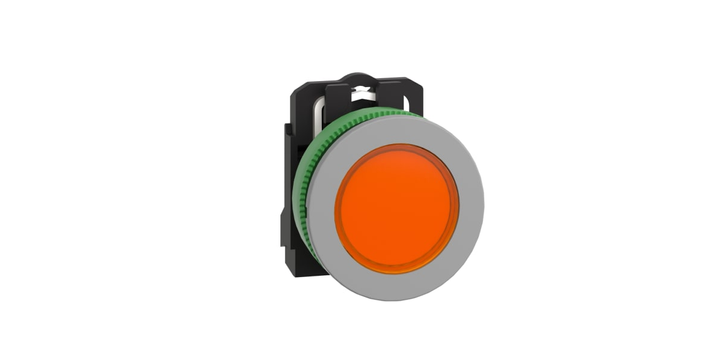

Schneider Electric XB5FVB5C0 XB5F, Flush Mount Orange Led Pilot Light, 30.5mm Cutout, IP66, IP67, Round, 24V ac/dc

Brand:	SCHNEIDER ELECTRIC
Model:	XB5FVB5C0

Specifications

View other Pilot Lights dimensions or variations

IP Degree of Protection

IP66, IP67

Cap/Operator Or Lens Colour

Orange

Voltage Rating

24 V ac/dc

Range of product

Harmony XB5

Series Name

XB5F

Mounting Type

Flush Mount

Pilot Light Type

Pilot Light Complete Unit

Cutout Diameter

30.5 mm

Lamp Type

LED

Product Description

S$ 35.55

(exc. GST)

S$ 38.75

(inc. GST)

Quantity:

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Pilot Lights

142 Items

Width

30 mm, 24 mm, 16 mm, 12 mm

Depth

78 mm, 53 mm, 57 mm, 51 mm, 34 mm

Standards

JIS C 852 UL 508 JIS C8201-5-1 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-5 EN/IEC 60947-5-1 JIS C8201-1, UL 508 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-5-5 JIS C 852 CSA C22.2 No 14 EN/IEC 60947-1, EN/IEC 60947-5-5 JIS C 852 EN/IEC 60947-1 UL 508 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-1 JIS C8201-1, EN/IEC 60947-5-1 EN/IEC 60947-5-5 UL 508 JIS C 852 JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-1 JIS C8201-1, CSA C22.2 No 14 EN/IEC 60947-5-1

Connections - terminals

Faston connectors, connection size: 6.35 x 0.8 mm conforming to IEC 60947-1 Forked type tag connectors, connection size: 6.5 mm conforming to IEC 60947-1 Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1, Threaded connector: clamping capacity 1 x 0.2...1 x 1.5 mm², Tag for Faston connectors: 2.8 x 0.5 mm Tag for soldering connectors, Faston connectors, connection size: 2.8 x 0.5 mm

Height

47 mm, 29 mm, 42 mm, 82 mm, 18 mm

IP Degree of Protection

IP67, IP54, IP66, IP65, IP66, IP67, IP69(IP69K)

Ambient air temperature for operation

-25…70 °C, -25…55 °C, -40…70 °C, -40…55 °C, -35…70 °C
