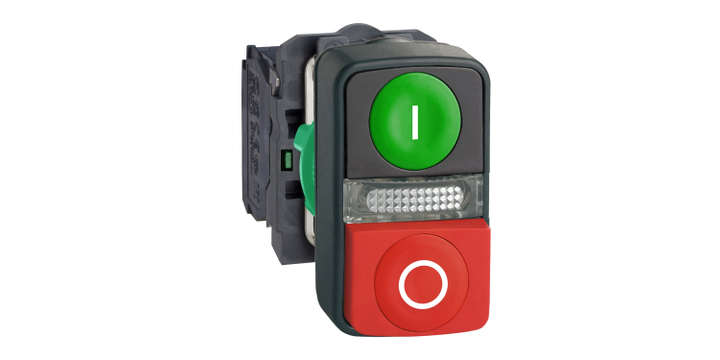

Schneider Electric XB5AW73731M5 Illuminated Double Headed Push Button, Harmony XB5, Plastic, 22mm, 1 Green Flush I + 1 Pilot Light + 1 Red Projecting O, 240V Ac Dc, 1NO + 1NC
Schneider Electric XB5AW73731M5 Illuminated Double Headed Push Button, Harmony XB5, Plastic, 22mm, 1 Green Flush I + 1 Pilot Light + 1 Red Projecting O, 240V Ac Dc, 1NO + 1NC
Brand: | SCHNEIDER ELECTRIC |
Model: | XB5AW73731M5 |
Specifications
Please select at least one specification below.
Contacts Type And Composition
1 NO + 1 NC
Mounting Diameter
22 mm
Operator Profile
Green flush, I (white)
Red projecting, O (white)
Bezel Material
Dark grey plastic
Standards
JIS C8201-5-1
UL 508
EN/IEC 60947-5-4
EN/IEC 60947-1
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-1
[Ui] Rated Insulation Voltage
600 V (pollution degree 3) conforming to EN 60947-1
Terminals Description Iso N°1
(13-14)NO
(11-12)NC
Current Consumption
14 mA
Short-Circuit Protection
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Electrical Reliability
Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4
Surge Withstand
1 kV conforming to IEC 61000-4-5
Operating Travel
1.5 mm (NC changing electrical state)
2.6 mm (NO changing electrical state)
4.3 mm (total travel)
Shape Of Signaling Unit Head
Rectangular
This spec is not available in the specification table.
Type Of Operator
spring return
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
6 kV conforming to EN 60947-1
This spec is not available in the specification table.
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
Spring terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Spring terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
This spec is not available in the specification table.
Overvoltage Category
Class II conforming to IEC 61140
This spec is not available in the specification table.
Ip Degree Of Protection
IP66 conforming to IEC 60529
IP69 conforming to IEC 60529
IP69K
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-40…70 °C
This spec is not available in the specification table.
Mechanical Durability
1000000 cycles
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Electrical Durability
1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
This spec is not available in the specification table.
Tightening Torque
0.8…1.2 N.m conforming to EN 60947-1
This spec is not available in the specification table.
Device Presentation
Complete product
This spec is not available in the specification table.
Contacts Material
Silver alloy (Ag/Ni)
This spec is not available in the specification table.
[Ie] Rated Operational Current
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
This spec is not available in the specification table.
[Ith] Conventional Free Air Thermal Current
10 A conforming to EN/IEC 60947-5-1
This spec is not available in the specification table.
Product Certifications
CSA
BV
LROS (Lloyds register of shipping)
GL
UL listed
DNV
This spec is not available in the specification table.
Ik Degree Of Protection
IK05 conforming to IEC 50102
This spec is not available in the specification table.
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
This spec is not available in the specification table.
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
This spec is not available in the specification table.
Resistance To Fast Transients
2 kV conforming to IEC 61000-4-4
This spec is not available in the specification table.
[Us] Rated Supply Voltage
230...240 V AC 50/60 Hz
This spec is not available in the specification table.
Supply Voltage Limits
195…264 V AC
This spec is not available in the specification table.
Service Life
100000 year(s) at rated voltage and 25 °C
This spec is not available in the specification table.
Resistance To High Pressure Washer
7000000 Pa at 55 °C, distance : 0.1 m
This spec is not available in the specification table.
Protective Treatment
TH
This spec is not available in the specification table.
Nema Degree Of Protection
NEMA 13
NEMA 4X
This spec is not available in the specification table.
Light Source
Protected LED
This spec is not available in the specification table.
Bulb Base
Integral LED
This spec is not available in the specification table.
Shape Of Screw Head
Cross compatible with JIS No 1 screwdriver
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
This spec is not available in the specification table.
Signalling Type
Steady
This spec is not available in the specification table.
Contact Operation
Slow-break
This spec is not available in the specification table.
Positive Opening
With conforming to EN/IEC 60947-5-1 appendix K
This spec is not available in the specification table.
Fixing Collar Material
Plastic
This spec is not available in the specification table.
Light Source Colour
White
This spec is not available in the specification table.
Resistance To Electromagnetic Fields
10 V/m conforming to IEC 61000-4-3
This spec is not available in the specification table.
Electromagnetic Emission
Class B conforming to IEC 55011
This spec is not available in the specification table.
Head Type
Standard
This spec is not available in the specification table.
Contacts Usage
Standard contacts
This spec is not available in the specification table.
Operating Force
3.5 N NC changing electrical state
3.8 N NO changing electrical state
This spec is not available in the specification table.
Colour Of Marking
White marking when green, red or black caps
Black marking when white caps
This spec is not available in the specification table.
Product Description
S$ 41.80
(exc. GST)
S$ 45.56
(inc. GST)
