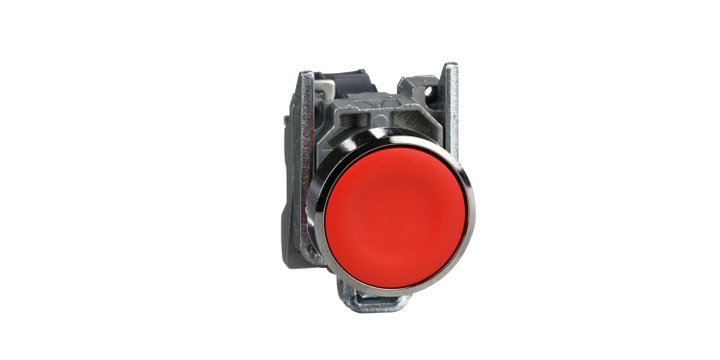

Schneider Electric XB4BA42 Push Button, Harmony XB4, Metal, Flush, Red, 22mm, Spring Return, Unmarked, 1NC
Schneider Electric XB4BA42 Push Button, Harmony XB4, Metal, Flush, Red, 22mm, Spring Return, Unmarked, 1NC
Brand: | SCHNEIDER ELECTRIC |
Model: | XB4BA42 |
Specifications
Please select at least one specification below.
Contacts Type And Composition
1 NC
Mounting Diameter
22.5 mm
Operator Profile
Red flush, unmarked
Bezel Material
Chromium plated metal
Standards
IEC 60947-5-5
UL 508
CSA C22.2 No 14
IEC 60947-5-4
IEC 60947-1
JIS C8201-5-1
IEC 60947-5-1
JIS C8201-1
[Ui] Rated Insulation Voltage
600 V (pollution degree 3) conforming to IEC 60947-1
Terminals Description Iso N°1
(21-22)NC
Short-Circuit Protection
10 A cartridge fuse type gG conforming to IEC 60947-5-1
Electrical Reliability
Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
Operating Travel
1.5 mm (NC changing electrical state)
4.3 mm (total travel)
Shape Of Signaling Unit Head
Round
This spec is not available in the specification table.
Type Of Operator
spring return
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
6 kV conforming to IEC 60947-1
This spec is not available in the specification table.
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
This spec is not available in the specification table.
Overvoltage Category
Class I conforming to IEC 60536
This spec is not available in the specification table.
Ip Degree Of Protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-40…70 °C
This spec is not available in the specification table.
Mechanical Durability
10000000 cycles
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Electrical Durability
1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
This spec is not available in the specification table.
Tightening Torque
0.8…1.2 N.m conforming to IEC 60947-1
This spec is not available in the specification table.
Device Presentation
Complete product
This spec is not available in the specification table.
Contacts Material
Silver alloy (Ag/Ni)
This spec is not available in the specification table.
[Ie] Rated Operational Current
3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
This spec is not available in the specification table.
[Ith] Conventional Free Air Thermal Current
10 A conforming to IEC 60947-5-1
This spec is not available in the specification table.
Product Certifications
LROS (Lloyds register of shipping)
GL
BV
CSA
DNV
UL listed
This spec is not available in the specification table.
Ik Degree Of Protection
IK06 conforming to IEC 50102
This spec is not available in the specification table.
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
This spec is not available in the specification table.
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Resistance To High Pressure Washer
7000000 Pa at 55 °C, distance : 0.1 m
This spec is not available in the specification table.
Protective Treatment
TH
This spec is not available in the specification table.
Nema Degree Of Protection
NEMA 13
NEMA 4X
This spec is not available in the specification table.
Shape Of Screw Head
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
This spec is not available in the specification table.
Contact Operation
Slow-break
This spec is not available in the specification table.
Positive Opening
With conforming to IEC 60947-5-1 appendix K
This spec is not available in the specification table.
Fixing Collar Material
Zamak
This spec is not available in the specification table.
Head Type
Standard
This spec is not available in the specification table.
Contacts Usage
Standard contacts
This spec is not available in the specification table.
Operating Force
3.5 N NC changing electrical state
This spec is not available in the specification table.
Product Description
S$ 14.90
(exc. GST)
S$ 16.24
(inc. GST)
Quantity:
/ EA
This item is sold by
Schneider Electric
