Schneider Electric XALD01 Empty Control Station, Harmony Xald, Xalk, Plastic, Dark Grey Lid, for Push Button 22mm, 1 Cut Out

View Brand

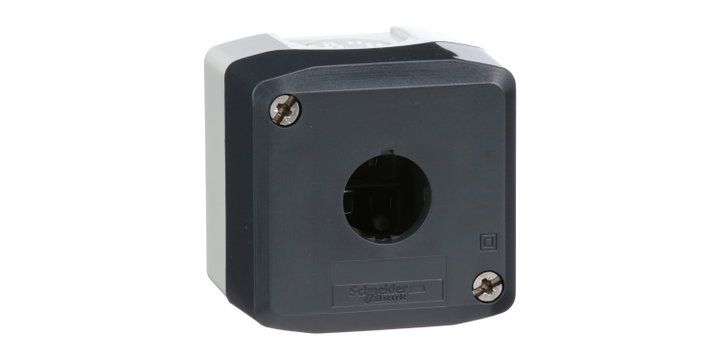

Schneider Electric XALD01 Empty Control Station, Harmony Xald, Xalk, Plastic, Dark Grey Lid, for Push Button 22mm, 1 Cut Out

Brand:	SCHNEIDER ELECTRIC
Model:	XALD01

Technical Data Sheets

Product Datasheet

Instruction sheet

Catalogue

Environmental disclosure

Specifications

View other Control Station Enclosures dimensions or variations

Material

Polycarbonate

Standards

IEC 60947-5-5 IEC 60947-5-4 CSA C22.2 No 14 IEC 60947-5-1 JIS C8201-5-1 IEC 60947-1 UL 508 JIS C8201-1

Ambient Air Temperature For Operation

-40…70 °C

Ambient Air Temperature For Storage

-40…70 °C

Colour Of Base Of Enclosure

Light grey (RAL 7035)

Colour Of Cover

Dark grey (RAL 7016)

Cable Entry

1 knock-out for cable entry, clamping capacity: 14 mm 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm

Device Short Name

XALD

Product Or Component Type

Empty control station

Range Of Product

Harmony XALD

Overvoltage Category

Class II conforming to IEC 60536

Ip Degree Of Protection

IP66 conforming to IEC 60529 IP67 IP69 IP69K

Ik Degree Of Protection

IK03 conforming to IEC 62262

Product Destination

For XB5 Ø 22 mm control and signalling units

Number Of Cut-Out

1 cut-out

Assembly Style

For customer assembly

Number Of Horizontal Rows

Number Of Vertical Rows

Resistance To High Pressure Washer

7000000 Pa at 55 °C, distance : 0.1 m

Mounting Of Block

Rear mounting Front mounting

Electrical Composition Code

MR1 SF1 SF2 SR2 PR1 MF1 MF2 PF1 PF2 SR1

Main Group

1 cut-out

Group Of Product

Standard grey

Protective Treatment

Nema Degree Of Protection

NEMA 13 NEMA 4X

Product Description

S$ 29.20

(exc. GST)

S$ 31.83

(inc. GST)
