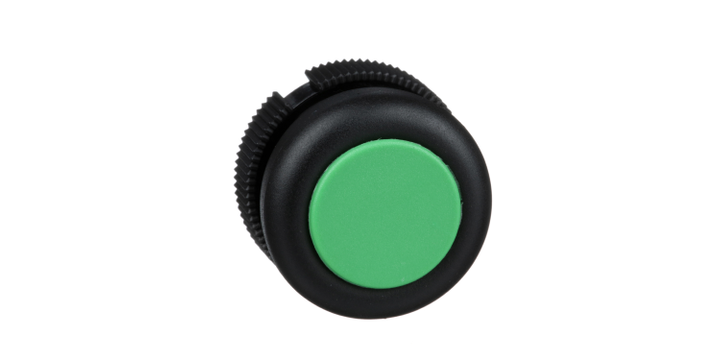

Schneider Electric XACA9413 Head for Push Button, Harmony Xac, Plastic, Green, Booted, Spring Return
Schneider Electric XACA9413 Head for Push Button, Harmony Xac, Plastic, Green, Booted, Spring Return
Specifications
infotip-icon
View other Pendant Switches dimensions or variations
Please select at least one specification below.
Ik Degree Of Protection
IK08 conforming to IEC 62262
Product Compatibility
XACA..
Product Or Component Type
Head for push-button
This spec is not available in the specification table.
Range Of Product
Harmony XAC
This spec is not available in the specification table.
Standards
IEC 60947-5-1 CSA C22.2 No 14 UL 508 IEC 60204-32
This spec is not available in the specification table.
Overvoltage Category
Class II conforming to IEC 61140
This spec is not available in the specification table.
Ip Degree Of Protection
IP65 conforming to IEC 60529
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-25…70 °C
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Marking
Unmarked
This spec is not available in the specification table.
Shock Resistance
100 gn conforming to IEC 60068-2-27
This spec is not available in the specification table.
Vibration Resistance
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Mounting Location
Front of enclosure
This spec is not available in the specification table.
Cap/Operator Or Lens Colour
Green
This spec is not available in the specification table.
Operator Additional Information
Booted
This spec is not available in the specification table.
Component Name
XACA
This spec is not available in the specification table.
Product Description
