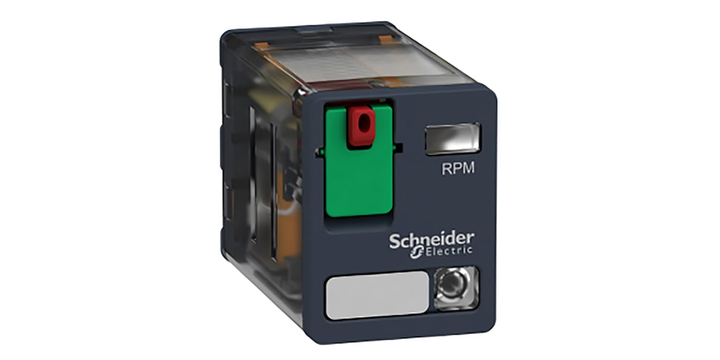

Schneider Electric RPM22B7 Power Relay, 24V Ac Coil, 15A Switching Current, Dpdt
Schneider Electric RPM22B7 Power Relay, 24V Ac Coil, 15A Switching Current, Dpdt
Brand: | SCHNEIDER ELECTRIC |
Model: | RPM22B7 |
Specifications
Please select at least one specification below.
Length
21 mm
Depth
39 mm
Height
27 mm
Contact Material
Silver Alloy
Contact Configuration
DPDT
Coil Voltage
24V ac
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+55°C
Maximum Switching Voltage AC
277 V
Maximum Switching Voltage DC
28 V dc
Coil Power
1.1 W
Isolation Coil To Contact
2 kV ac
Maximum Switching Power DC
3750 VA
Switching Current
15 A
Maximum Switching Power AC
420 W
Number of Poles
2
This spec is not available in the specification table.
Life
10000000 cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Series Name
Harmony Relay RP
This spec is not available in the specification table.
Maximum Switching Current AC
15 A
This spec is not available in the specification table.
Maximum Switching Current DC
15 A
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Product Description
S$ 40.69
(exc. GST)
S$ 44.35
(inc. GST)
Quantity:
/ EA
