Schneider Electric M9F42225 Multi 9 C60BP Mcb, 2P, 25A Curve C, 440V Ac, 125V Dc, 15 Ka Breaking Capacity

View Brand

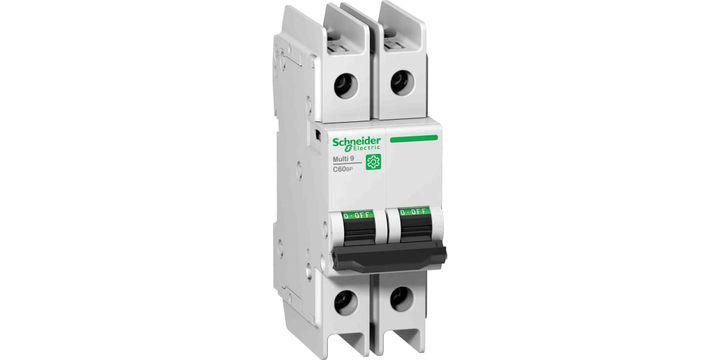

Schneider Electric M9F42225 Multi 9 C60BP Mcb, 2P, 25A Curve C, 440V Ac, 125V Dc, 15 Ka Breaking Capacity

Brand:	SCHNEIDER ELECTRIC
Model:	M9F42225

Specifications

View other Miniature Circuit Breakers - MCBs dimensions or variations

Range

Multi 9

Poles Description

[In] Rated Current

25 A

Breaking Capacity

15 kA

Width

36 mm

Depth

72 mm

Mounting Support

DIN Rail Mount

Series Name

C60BP

Length

103 mm

Tripping Characteristics

Type C

Circuit Breaker Type

Residential MCB

Better World Product

Yes

Better World Verification

Green Premium

Tripping Mechanism

Thermal-Magnetic

Reset Actuator Type

Toggle Switch

Rated AC Voltage

440 V

Rated DC Voltage

125 V

Product Description

S$ 228.46

(exc. GST)

S$ 249.02

(inc. GST)
