Schneider Electric LP1K09008BD Contactor, Tesys K, 4P(2NO+2NC),AC-1, 440V, 20A, 24V Dc Coil, Screw Clamp Terminals

View Brand

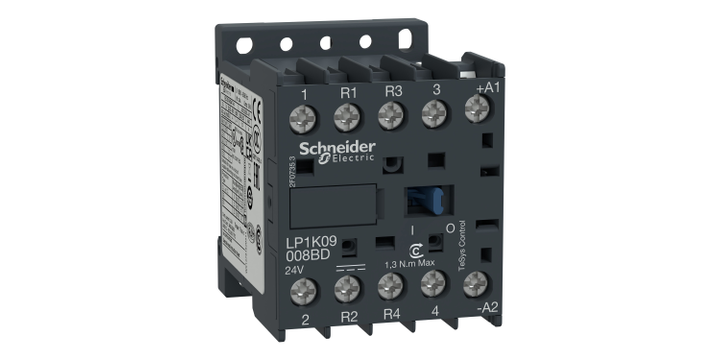

Schneider Electric LP1K09008BD Contactor, Tesys K, 4P(2NO+2NC),AC-1, 440V, 20A, 24V Dc Coil, Screw Clamp Terminals

Brand:	SCHNEIDER ELECTRIC
Model:	LP1K09008BD

Technical Data Sheets

Product Datasheet

Instruction sheet

Catalogue

Environmental disclosure

Specifications

View other Contactors dimensions or variations

Device Short Name

LP1K

Depth

57 mm

Poles Description

Contactor Application

Resistive load

Standards

EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4

[Ui] Rated Insulation Voltage

Power circuit: 600 V conforming to UL 508 Power circuit: 690 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA C22.2 No 14

[Uimp] Rated Impulse Withstand Voltage

8 kV

Mounting Support

Rail Plate

Connections - Terminals

Screw clamp terminals 1 cable(s) 1.5…4 mm²solid Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 1.5…4 mm²solid Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end Power circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end

Height

58 mm

Ip Degree Of Protection

IP2X

Ambient Air Temperature For Operation

-25…50 °C

Mechanical Durability

10 Mcycles

Ambient Air Temperature For Storage

-50…80 °C

Electrical Durability

0.16 Mcycles 20 A AC-1 at Ue <= 690 V

Operating Altitude

2000 m without derating

Tightening Torque

0.8…1.3 N.m - on screw clamp terminals Philips No 2 0.8…1.3 N.m - on screw clamp terminals flat Ø 6 mm

[Ue] Rated Operational Voltage

Power circuit: <= 690 V AC <= 400 Hz Signalling circuit: <= 690 V AC <= 400 Hz

[Ie] Rated Operational Current

20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit

[Uc] Control Circuit Voltage

24 V DC

Heat dissipation

1.3 W

Range

TeSys

Utilisation Category

AC-1

[Ith] Conventional Free Air Thermal Current

20 A (at 60 °C) for power circuit 10 A (at 50 °C) for signalling circuit

Irms Rated Making Capacity

110 A AC for power circuit conforming to IEC 60947

Rated Breaking Capacity

110 A at 220...230 V conforming to IEC 60947 110 A at 380...400 V conforming to IEC 60947 110 A at 415 V conforming to IEC 60947 110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 70 A at 660...690 V conforming to IEC 60947

[Icw] Rated Short-Time Withstand Current

90 A 50 °C - 1 s for power circuit 85 A 50 °C - 5 s for power circuit 80 A 50 °C - 10 s for power circuit 60 A 50 °C - 30 s for power circuit 45 A 50 °C - 1 min for power circuit 40 A 50 °C - 3 min for power circuit 20 A 50 °C - >= 15 min for power circuit

Associated Fuse Rating

25 A gG at <= 440 V for power circuit 25 A aM for power circuit

Average Impedance

3 mOhm - Ith 20 A 50 Hz for power circuit

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Control Circuit Type

DC standard

Control Circuit Voltage Limits

Operational: 0.8...1.15 Uc (at <50 °C) Drop-out: >= 0.10 Uc (at <50 °C)

Operating Time

30...40 ms coil energisation and NO closing 10 ms coil de-energisation and NO opening 25...35 ms coil energisation and NC opening 15 ms coil de-energisation and NC closing

Auxiliary Contact Composition

3600 cyc/h

Flame Retardance

V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102

Inrush Power In W

3 W (at 20 °C)

Hold-In Power Consumption In W

3 W at 20 °C

Power Pole Contact Composition

2 NO + 2 NC
