EN/IEC 60947-2
JIS C8201-2-2
EN/IEC 60947-1
GB/T 14048.2
[Ui] Rated Insulation Voltage
440 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage
6 kV conforming to IEC 60947-2
Ip Degree Of Protection
IP20 conforming to IEC 60529
Pollution Degree
3 conforming to IEC 60947
Ambient Air Temperature For Storage
-35…85 °C
[Ue] Rated Operational Voltage
440 V AC 50/60 Hz conforming to IEC 60947-2
Trip Unit Rating
250 A at 40 °C
Breaking Capacity
100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
This spec is not available in the specification table.
Trip Unit Technology
Thermal-magnetic
This spec is not available in the specification table.
Control Type
Toggle
This spec is not available in the specification table.
Mounting Mode
Fixed
This spec is not available in the specification table.
Trip Unit Name
TM-D
This spec is not available in the specification table.

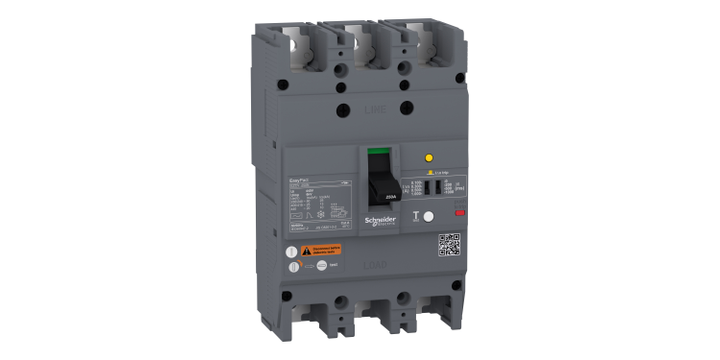

Device Short Name
Easypact EZCV250H
This spec is not available in the specification table.
Product Or Component Type
Circuit breaker
This spec is not available in the specification table.
Range Of Product
EasyPact
This spec is not available in the specification table.
Device Application
Distribution
This spec is not available in the specification table.
Connection Pitch
35 mm
This spec is not available in the specification table.
Utilisation Category
Category A
This spec is not available in the specification table.
Suitability For Isolation
Yes conforming to IEC 60947-2
This spec is not available in the specification table.
Mounting Support
Backplate
This spec is not available in the specification table.
Local Signalling
Positive contact indication
This spec is not available in the specification table.
Mechanical Durability
10000 cycles
This spec is not available in the specification table.
Electrical Durability
Category A: 5000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
This spec is not available in the specification table.
Earth-Leakage Protection
With
This spec is not available in the specification table.
Ik Degree Of Protection
IK07 conforming to EN 50102
This spec is not available in the specification table.
This spec is not available in the specification table.
Upside Connection
Front
This spec is not available in the specification table.
Downside Connection
Front
This spec is not available in the specification table.
Depth
68 mm
This spec is not available in the specification table.
[Ics] Rated Service Breaking Capacity
12.5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
18 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
This spec is not available in the specification table.
Height
165 mm
This spec is not available in the specification table.
Breaking Capacity Code
H
This spec is not available in the specification table.
Circuit Breaker Name
Easypact EZCV250H
This spec is not available in the specification table.
Neutral Protection Setting
Without protection
