Schneider Electric Complete body/contact Assembly and Light Block, Harmony XB5, XB4, With body/fixing Collar, Universal Led, 230...240V, 1NO + 1NC ZB5AW0M15

Schneider Electric Complete body/contact Assembly and Light Block, Harmony XB5, XB4, With body/fixing Collar, Universal Led, 230...240V, 1NO + 1NC ZB5AW0M15

Brand:	SCHNEIDER ELECTRIC
Model:	ZB5AW0M15

Product Description

SCHNEIDER ELECTRIC Complete body/contact Assembly and Light Block, Harmony XB5, XB4, With body/fixing Collar, Universal Led, 230...240V, 1NO + 1NC ZB5AW0M15

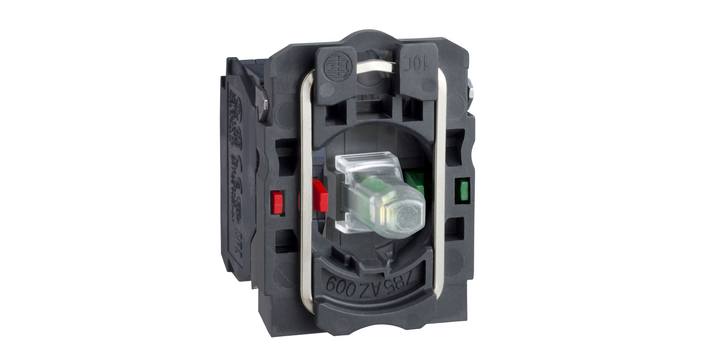

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

S$ 24.59

(exc. GST)

S$ 26.81

(inc. GST)

Units	Discount	Unit Price
1 ~ 9	-	S$ 24.59
10++	14% OFF	S$ 21.20

Lead time of 2 working days required.

Item will be ready to dispatch within the lead time specified.

Quantity:

EA

This item is sold by

Free delivery above SGD 300 spent in this shop

Shop by Specification Table

You can find items with similar specifications from the table below.

contact-block-img

Contacts type and composition

1 NC + 1 NO, 2 NC, 1 C/O + 1 NO, 2 NO + 1 C/O, 1 NC + 2 NO

Range Of Product

Harmony 9001K Harmony 9001SK, Harmony XB6, Harmony XAC, Harmony XAL Harmony XAPS, Harmony XAPS Harmony XAL

IEC 60947-3 CSA C22.2 No 14 EN 60947-3, EN/IEC 60947-5-1 UL 508 EN/IEC 60204-32 CSA C22.2 No 14, CSA C22.2 No 14 EN/IEC 60947-5-1 UL 508, IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-1 UL 508 IEC 60947-5-5 JIS C8201-5-1 IEC 60947-5-4 JIS C8201-1, IEC 60947-5-5 IEC 60947-5-4 UL 508 JIS C8201-5-1 IEC 60947-1 CSA C22.2 No 14 IEC 60947-5-1 JIS C8201-1

[Ui] Rated Insulation Voltage

600 V (pollution degree 3) conforming to IEC 60947-1, 250 V (pollution degree 3) conforming to IEC 60947-1, 250 V (pollution degree 3) conforming to EN/IEC 60947-1, 500 V (pollution degree 3) conforming to IEC 60947-1, 600 V conforming to CSA

[Uimp] Rated Impulse Withstand Voltage

4 kV conforming to IEC 60947-1, 6 kV conforming to EN 60947-1, 6 kV conforming to IEC 60947-1, 2.5 kV conforming to IEC 60947-1, 4 kV conforming to EN/IEC 60947-1

[Ie] Rated Operational Current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 2 A at 230 V, AC-15, A600 conforming to IEC 60947-5-1 0.2 A at 110 V, DC-13, Q600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA, 3 A at 120 V, AC-15, B300 1.5 A at 240 V, AC-15, B300 0.1 A at 250 V, DC-13, R300 0.22 A at 125 V, DC-13, R300

Contact Operation

Positive opening, Standard, Staggered Snap action, Snap action Staggered, Slow-break Staggered
