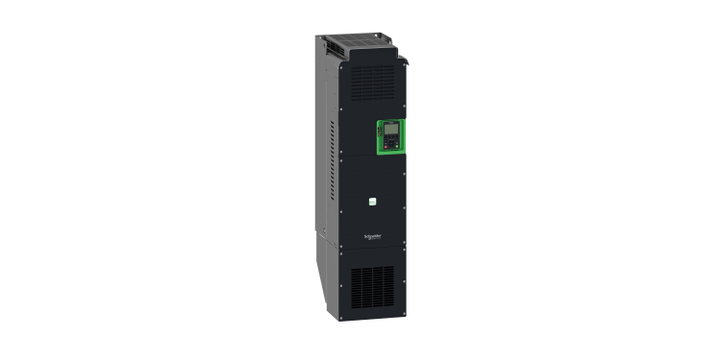

Schneider Electric ATV630C11N4 Variable Speed Drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00
Schneider Electric ATV630C11N4 Variable Speed Drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00
Specifications
infotip-icon
View other Inverter Drives dimensions or variations
Please select at least one specification below.
Local Signalling
2 LEDs for local diagnostic 1 LED (yellow) for embedded communication status 2 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage
Range of Product
Easy Altivar 610
Mounting Mode
Cabinet mount
Accuracy
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
Standard
IEC 61800-3 Environment 2 category C3 IEC 61800-3 IEC 61800-5-1 IEC 60721-3
IP Degree of Protection
IP20
Ambient Air Temperature for Operation
-15…45 °C (without derating) 45…60 °C (with derating factor)
Operating Altitude
<= 1000 m without derating 1000...4800 m with current derating 1 % per 100 m
Vibration Resistance
1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
[Us] Rated Supply Voltage
380...460 V - 15...10 %
Supply Frequency
50...60 Hz +/- 5 %
Switching Frequency
2...12 kHz adjustable
Noise Level
55 dB conforming to 86/188/EEC
Transmission Rate
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial
Power Dissipation in W
171 W(forced convection) at 380 V, switching frequency 4 kHz 35 W(natural convection) at 380 V, switching frequency 4 kHz
Sampling Duration
5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input 2 ms +/- 0.5 ms (DI1...DI6)configurable - discrete input 5 ms +/- 1 ms (DI5, DI6)configurable - pulse input 10 ms +/- 1 ms (AQ1, AQ2) - analog output
Continuous Output Current
12.7 A at 4 kHz for normal duty 9.3 A at 4 kHz for heavy duty
Line Current
11.6 A at 380 V (normal duty) 10.5 A at 460 V (normal duty) 8.9 A at 380 V (heavy duty) 7.9 A at 460 V (heavy duty)
Apparent Power
8.4 kVA at 460 V (normal duty) 6.3 kVA at 460 V (heavy duty)
Maximum Transient Current
14 A during 60 s (normal duty) 14 A during 60 s (heavy duty)
Linearity Error
AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input AQ1, AQ2: +/- 0.2 % for analog output
Width
145 mm
This spec is not available in the specification table.
Device Short Name
ATV610
This spec is not available in the specification table.
Product or Component Type
Variable speed drive
This spec is not available in the specification table.
Depth
203 mm
This spec is not available in the specification table.
Height
297 mm 350 mm with EMC plate
This spec is not available in the specification table.
Pollution Degree
2 conforming to IEC 61800-5-1
This spec is not available in the specification table.
Relative Humidity
5…95 % without condensation conforming to IEC 60068-2-3
This spec is not available in the specification table.
Marking
CE
This spec is not available in the specification table.
Environmental Characteristic
Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3 Dust pollution resistance class 3S3 conforming to IEC 60721-3-3
This spec is not available in the specification table.
Analog Input Type
AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits AI2, AI3 software-configurable temperature probe or water level sensor
This spec is not available in the specification table.
Electromagnetic Compatibility
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
This spec is not available in the specification table.
Motor Power kW
5.5 kW for normal duty 4 kW for heavy duty
This spec is not available in the specification table.
Motor Power hp
7.5 hp for normal duty 5 hp for heavy duty
This spec is not available in the specification table.
Minimum Switching Current
Relay output R1, R2, R3: 5 mA at 24 V DC
This spec is not available in the specification table.
Insulation Resistance
> 1 MOhm 500 V DC for 1 minute to earth
This spec is not available in the specification table.
Operating Position
Vertical +/- 10 degree
This spec is not available in the specification table.
Product Specific Application
Fan, pump, compressor, conveyor
This spec is not available in the specification table.
Shock Resistance
15 gn for 11 ms conforming to IEC 60068-2-27
This spec is not available in the specification table.
Protection Type
Thermal protection: motor Motor phase break: motor Thermal protection: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive
This spec is not available in the specification table.
Connector Type
1 RJ45 (on the remote graphic terminal) for Modbus serial
This spec is not available in the specification table.
Product Destination
Asynchronous motors Synchronous motors
This spec is not available in the specification table.
Output Voltage
<= power supply voltage
This spec is not available in the specification table.
Discrete Input Number
6
This spec is not available in the specification table.
Analogue Input Number
3
This spec is not available in the specification table.
Maximum Switching Current
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
This spec is not available in the specification table.
Electrical Connection
Control, screw terminal: 0.5...1.5 mm² Line side, screw terminal: 2.5...16 mm² Motor, screw terminal: 2.5...16 mm²
This spec is not available in the specification table.
Network Number of Phases
3 phases
This spec is not available in the specification table.
Discrete Input Logic
Positive logic (source): DI1...DI6 configurable logic input, < 5 V (state 0), > 11 V (state 1) Negative logic (sink): DI1...DI6 configurable logic input, > 16 V (state 0), < 10 V (state 1) Positive logic (source): DI5, DI6 configurable pulse input, < 0.6 V (state 0), > 2.5 V (state 1)
This spec is not available in the specification table.
Output Frequency
0.1…500 Hz
This spec is not available in the specification table.
Supply
External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
This spec is not available in the specification table.
Physical Interface
2-wire RS 485 for Modbus serial
This spec is not available in the specification table.
Input Compatibility
DI1...DI6: logic input level 1 PLC conforming to IEC 61131-2 DI5, DI6: pulse input level 1 PLC conforming to IEC 65A-68
This spec is not available in the specification table.
Analogue Output Number
2
This spec is not available in the specification table.
Analogue Output Type
Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
This spec is not available in the specification table.
EMC Filter
Integrated conforming to IEC 61800-3 category C3 with 50 m
This spec is not available in the specification table.
Method of Access
Slave
This spec is not available in the specification table.
Type of Cooling
Forced convection
This spec is not available in the specification table.
Communication Port Protocol
Modbus serial
This spec is not available in the specification table.
Variant
Standard version
This spec is not available in the specification table.
Asynchronous Motor Control Profile
Optimized torque mode Variable torque standard Constant torque standard
This spec is not available in the specification table.
Nominal Switching Frequency
4 kHz
This spec is not available in the specification table.
Prospective Line Isc
22 kA
This spec is not available in the specification table.
Discrete Input Type
DI1...DI6 programmable as logic input, 24 V DC (<= 30 V), impedance: 3.5 kOhm DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
This spec is not available in the specification table.
Relay Output Number
3
This spec is not available in the specification table.
Relay Output Type
Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles
This spec is not available in the specification table.
Transmission Frame
RTU for Modbus serial
This spec is not available in the specification table.
Number of Addresses
1…247 for Modbus serial
This spec is not available in the specification table.
Type of Polarization
No impedance for Modbus serial
This spec is not available in the specification table.
Acceleration and Deceleration Ramps
Linear adjustable separately from 0.01 to 9000 s S, U or customized
This spec is not available in the specification table.
Motor Slip Compensation
Automatic whatever the load Adjustable Not available in permanent magnet motor law Can be suppressed
This spec is not available in the specification table.
Braking to Standstill
By DC injection
This spec is not available in the specification table.
Refresh Time
Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
This spec is not available in the specification table.
Isolation
Between power and control terminals
This spec is not available in the specification table.
Option Card
Slot A: communication card, Profibus DP V1 Slot A: digital or analog I/O extension card Slot A: relay output card
This spec is not available in the specification table.
Frequency Resolution
Display unit: 0.1 Hz Analog input: 0.012/50 Hz
This spec is not available in the specification table.
Number of Preset Speeds
16 preset speeds
This spec is not available in the specification table.
Product Description
S$ 15,087.00
(exc. GST)
S$ 16,444.83
(inc. GST)
Quantity:
/ EA
