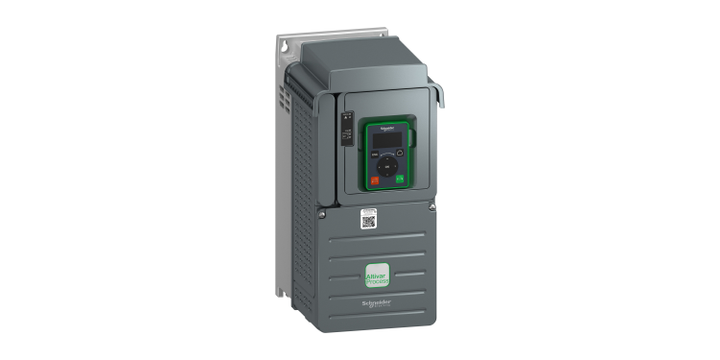

Schneider Electric ATV610D15N4 Variable Speed Drive, Easy Altivar 610, 15kW, 20hp, 380 to 460V, IP20
Schneider Electric ATV610D15N4 Variable Speed Drive, Easy Altivar 610, 15kW, 20hp, 380 to 460V, IP20
Specifications
infotip-icon
View other Inverter Drives dimensions or variations
Please select at least one specification below.
Local Signalling
3 LEDs (dual colour) for embedded communication status 4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage 3 LEDs for local diagnostic
Range of Product
Altivar Process ATV600
Mounting Mode
Wall mount
Accuracy
+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
Standard
IEC 61800-3 IEC 61800-3 environment 1 category C2 EN/IEC 61800-3 environment 2 category C3 IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 UL 508C
IP Degree of Protection
IP55 conforming to IEC 60529 IP55 conforming to IEC 61800-5-1
Ambient Air Temperature for Operation
40…50 °C (with derating factor) -15…40 °C (without derating)
Ambient Air Temperature for Storage
-40…70 °C
Operating Altitude
1000...4800 m with current derating 1 % per 100 m <= 1000 m without derating
Vibration Resistance
1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6
[Us] Rated Supply Voltage
380...480 V - 15...10 %
Supply Frequency
50...60 Hz - 5...5 %
Switching Frequency
4...12 kHz with derating factor 2...12 kHz adjustable
Noise Level
52 dB
Transmission Rate
10, 100 Mbits 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Sampling Duration
5 ms +/- 1 ms (DI5, DI6) - discrete input 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input 10 ms +/- 1 ms (AO1) - analog output 2 ms +/- 0.5 ms (DI1...DI4) - discrete input
Continuous Output Current
7.2 A at 4 kHz for heavy duty 12.7 A at 4 kHz for normal duty
Line Current
6.7 A at 480 V (normal duty) 6 A at 380 V (heavy duty) 5.4 A at 480 V (heavy duty) 10.4 A at 380 V (normal duty)
Apparent Power
4.5 kVA at 480 V (heavy duty) 7.6 kVA at 480 V (normal duty)
Maximum Transient Current
10.2 A during 60 s (normal duty) 14 A during 60 s (normal duty)
Maximum Input Current
10.4 A
Linearity Error
AO1, AO2: +/- 0.2 % for analog output AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
Width
264 mm
This spec is not available in the specification table.
Device Short Name
ATV650
This spec is not available in the specification table.
Product or Component Type
Variable speed drive
This spec is not available in the specification table.
Depth
272 mm
This spec is not available in the specification table.
Overvoltage Category
III
This spec is not available in the specification table.
Pollution Degree
3
This spec is not available in the specification table.
Relative Humidity
5…95 % without condensation conforming to IEC 60068-2-3
This spec is not available in the specification table.
Marking
CE
This spec is not available in the specification table.
Analog Input Type
AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits
This spec is not available in the specification table.
Electromagnetic Compatibility
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
This spec is not available in the specification table.
Motor Power kW
4.0 kW (heavy duty) 5.5 kW (normal duty)
This spec is not available in the specification table.
Motor Power hp
4 hp heavy duty 7.5 hp normal duty
This spec is not available in the specification table.
Minimum Switching Current
Relay output R1, R2, R3: 5 mA at 24 V DC
This spec is not available in the specification table.
Insulation Resistance
> 1 MOhm 500 V DC for 1 minute to earth
This spec is not available in the specification table.
Certifications
Bureau Veritas TÜV DNV-GL ATEX INERIS ABS UL CSA UL
This spec is not available in the specification table.
Operating Position
Vertical +/- 10 degree
This spec is not available in the specification table.
Product Specific Application
Process and utilities
This spec is not available in the specification table.
Shock Resistance
15 gn for 11 ms conforming to IEC 60068-2-27
This spec is not available in the specification table.
Protection Type
Safe torque off: motor Motor phase break: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive Thermal protection: motor
This spec is not available in the specification table.
Connector Type
RJ45 (on the remote graphic terminal) for Modbus serial RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP
This spec is not available in the specification table.
Product Destination
Asynchronous motors Synchronous motors
This spec is not available in the specification table.
Output Voltage
<= power supply voltage
This spec is not available in the specification table.
Discrete Input Number
8
This spec is not available in the specification table.
Analogue Input Number
3
This spec is not available in the specification table.
Maximum Switching Current
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC
This spec is not available in the specification table.
Electrical Connection
Line side: screw terminal 4...6 mm²/AWG 12...AWG10 Motor: screw terminal 4...6 mm²/AWG 12...AWG10 Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16
This spec is not available in the specification table.
Network Number of Phases
3 phases
This spec is not available in the specification table.
Discrete Input Logic
Positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1) Negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1)
This spec is not available in the specification table.
Discrete Output Number
0
This spec is not available in the specification table.
Regulation Loop
Adjustable PID regulator
This spec is not available in the specification table.
Supply
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection
This spec is not available in the specification table.
Maximum Output Frequency
500 kHz
This spec is not available in the specification table.
Physical Interface
Ethernet 2-wire RS 485
This spec is not available in the specification table.
Input Compatibility
DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 STOA, STOB: discrete input level 1 PLC conforming to IEC 61131-2 DI1...DI6: discrete input level 1 PLC conforming to IEC 61131-2
This spec is not available in the specification table.
Permissible Temporary Current Boost
1.5 x In during 60 s (heavy duty) 1.1 x In during 60 s (normal duty)
This spec is not available in the specification table.
Analogue Output Number
2
This spec is not available in the specification table.
Analogue Output Type
Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Software-configurable current DQ-, DQ+: 30 V DC Software-configurable current DQ-, DQ+: 100 mA
This spec is not available in the specification table.
EMC Filter
Integrated with 50 m conforming to IEC 61800-3 category C2 Integrated with 150 m conforming to IEC 61800-3 category C3
This spec is not available in the specification table.
Safety Function
STO (safe torque off) SIL 3
This spec is not available in the specification table.
Method of Access
Slave Modbus TCP
This spec is not available in the specification table.
Type of Cooling
Forced convection
This spec is not available in the specification table.
Communication Port Protocol
Ethernet Modbus serial Modbus TCP
This spec is not available in the specification table.
Exchange Mode
Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
This spec is not available in the specification table.
Variant
Standard version
This spec is not available in the specification table.
Asynchronous Motor Control Profile
Optimized torque mode Constant torque standard Constant torque standard
This spec is not available in the specification table.
Synchronous Motor Control Profile
Synchronous reluctance motor Permanent magnet motor
This spec is not available in the specification table.
Nominal Switching Frequency
4 kHz
This spec is not available in the specification table.
Prospective Line Isc
50 kA
This spec is not available in the specification table.
Discrete Input Type
DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
This spec is not available in the specification table.
Discrete Output Type
Relay outputs R1A, R1B, R1C 250 V AC 3000 mA Relay outputs R1A, R1B, R1C 30 V DC 3000 mA Relay outputs R2A, R2C 250 V AC 5000 mA Relay outputs R2A, R2C 30 V DC 5000 mA Relay outputs R3A, R3C 250 V AC 5000 mA Relay outputs R3A, R3C 30 V DC 5000 mA
This spec is not available in the specification table.
Relay Output Number
3
This spec is not available in the specification table.
Relay Output Type
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
This spec is not available in the specification table.
Transmission Frame
RTU
This spec is not available in the specification table.
Number of Addresses
1…247 for Modbus serial
This spec is not available in the specification table.
Data Format
8 bits, configurable odd, even or no parity
This spec is not available in the specification table.
Type of Polarization
No impedance
This spec is not available in the specification table.
Acceleration and Deceleration Ramps
Linear adjustable separately from 0.01...9999 s
This spec is not available in the specification table.
Motor Slip Compensation
Automatic whatever the load Not available in permanent magnet motor law Can be suppressed Not available in permanent magnet motor law
This spec is not available in the specification table.
Braking to Standstill
By DC injection
This spec is not available in the specification table.
Refresh Time
Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
This spec is not available in the specification table.
Isolation
Between power and control terminals
This spec is not available in the specification table.
Maximum THDI
<48 % full load conforming to IEC 61000-3-12
This spec is not available in the specification table.
Speed Drive Output Frequency
0.1…500 Hz
This spec is not available in the specification table.
Option Card
Slot A: communication module, PROFINET Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45 Slot A: communication module, CANopen SUB-D 9 Slot A: communication module, CANopen screw terminals Slot A/slot B: digital and analog I/O extension module Slot A/slot B: output relay extension module Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link Communication module, BACnet MS/TP Communication module, Ethernet Powerlink Slot A: communication module, Profibus DP V1
This spec is not available in the specification table.
Frequency Resolution
Analog input: 0.012/50 Hz Display unit: 0.1 Hz
This spec is not available in the specification table.
Variable Speed Drive Application Selection
Building - HVAC compressor centrifugal
This spec is not available in the specification table.
Motor Power Range AC-3
4…6 kW at 380…440 V 3 phases
This spec is not available in the specification table.
Enclosure Mounting
Wall mounted
This spec is not available in the specification table.
Product Description
S$ 3,032.40
(exc. GST)
S$ 3,305.32
(inc. GST)
Quantity:
/ EA
This item is sold by
Schneider Electric
