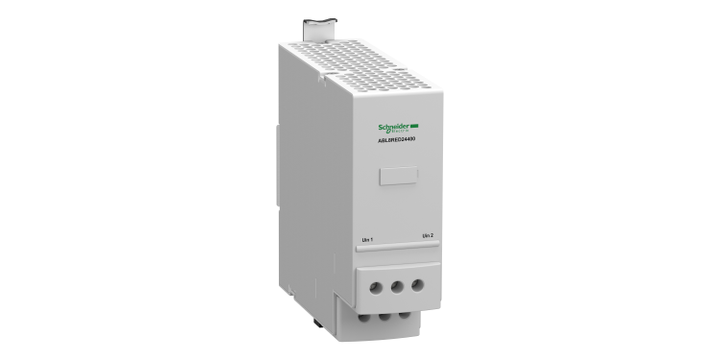

Schneider Electric ABL8RED24400 40A - Redundancy Module
Schneider Electric ABL8RED24400 40A - Redundancy Module
Brand: | SCHNEIDER ELECTRIC |
Model: | ABL8RED24400 |
Specifications
Please select at least one specification below.
Standards
CSA C22.2 No 60950-1
UL 508
Connections - Terminals
For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8
For input connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² AWG 20...AWG 8
For diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² AWG 14
Product Certifications
EAC
RCM
Local Signalling
1 LED per input (green) for power supply status
1 relay for power supply status
This spec is not available in the specification table.
Product Or Component Type
Redundancy module
This spec is not available in the specification table.
Range Of Product
Phaseo
This spec is not available in the specification table.
Overvoltage Category
Class II conforming to VDE 0106-1
This spec is not available in the specification table.
Ip Degree Of Protection
IP20 conforming to IEC 60529
This spec is not available in the specification table.
Relative Humidity
0…90 % during operation
0…95 % during storage
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-25…60 °C
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…85 °C
This spec is not available in the specification table.
Operating Altitude
2000 m
This spec is not available in the specification table.
Marking
CE
This spec is not available in the specification table.
Fixing Mode
By clips on 35 mm symmetrical DIN rail, operating position: horizontal
By clips on 35 mm symmetrical DIN rail, operating position: vertical
This spec is not available in the specification table.
Environmental Characteristic
EMC conforming to IEC 61000-6-3
EMC conforming to IEC 61000-6-2
Safety conforming to IEC 60950-1
Safety conforming to EN/IEC 61204
This spec is not available in the specification table.
Input Current
20 A
This spec is not available in the specification table.
Vibration Resistance
2 gn (f= 11.9…150 Hz) conforming to IEC 61131-2
3.5 mm (f= 3…11.9 Hz) conforming to IEC 61131-2
This spec is not available in the specification table.
Dielectric Strength
500 V between input and ground
500 V between output and ground
This spec is not available in the specification table.
Input Voltage
24...28.8 V DC
This spec is not available in the specification table.
Output Voltage
(Uin-0.2) V DC
This spec is not available in the specification table.
Input Voltage Limits
22...30 V
This spec is not available in the specification table.
Output Protection Type
Against overload, protection technology: external protection by power supply
Against short-circuits, protection technology: external protection by power supply
This spec is not available in the specification table.
Output Coupling
Parallel
This spec is not available in the specification table.
Name Of Test
Electrostatic discharges conforming to IEC 61000-4-2
Emission conforming to IEC 61000-6-3
Induced electromagnetic field conforming to IEC 61000-4-6 level 3
Radiated electromagnetic field conforming to IEC 61000-4-3 level 3
Rapid transient conforming to IEC 61000-4-4 level 3
Surge conforming to IEC 61000-4-5 level 2
Conducted/radiated emissions conforming to EN 55022 class B
Emission conforming to EN 50081-1
This spec is not available in the specification table.
Maximum Output Current
40 A
This spec is not available in the specification table.
Number Of Output Channels
1
This spec is not available in the specification table.
Mtbf Reliability
2488391 H at 24 V DC with UTE C80-810 calculation method
This spec is not available in the specification table.
Product Description
S$ 256.90
(exc. GST)
S$ 280.02
(inc. GST)
