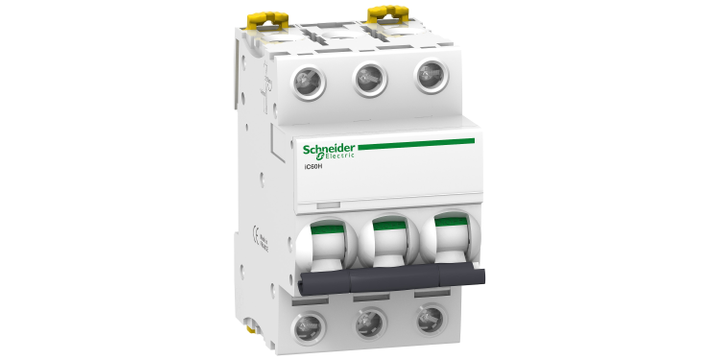

Schneider Electric A9F84340 Miniature Circuit Breaker (mcb), Acti9 iC60H, 3P, 40A, C Curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Schneider Electric A9F84340 Miniature Circuit Breaker (mcb), Acti9 iC60H, 3P, 40A, C Curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Brand: | SCHNEIDER ELECTRIC |
Model: | A9F84340 |
Specifications
Please select at least one specification below.
Range
Acti 9
Poles Description
3P
Network Type
DC
AC
Number of Protected Poles
3
[In] Rated Current
40 A
Curve Code
C
Breaking Capacity
10000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
42 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
42 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
15 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2
Standards
IEC 60947-2
IEC 60898-1
EN 60898-1
EN 60947-2
Magnetic Tripping Limit
8 x In +/- 20 %
Connection - Terminals
Single terminal (top or bottom) 1…35 mm² rigid
Single terminal (top or bottom) 1…25 mm² flexible
IP Degree of Protection
IP20 conforming to IEC 60529
IP20 conforming to EN 60529
Ambient Air Temperature for Operation
-35…70 °C
Mechanical Durability
20000 cycles
Ambient Air Temperature for Storage
-40…85 °C
Electrical Durability
10000 cycles
Tightening Torque
3.5 N.m top or bottom
Colour
White
This spec is not available in the specification table.
Width
54 mm
This spec is not available in the specification table.
Trip Unit Technology
Thermal-magnetic
This spec is not available in the specification table.
Control Type
Toggle
This spec is not available in the specification table.
Device Short Name
iC60H
This spec is not available in the specification table.
Product Name
Acti9 iC60
This spec is not available in the specification table.
Depth
78.5 mm
This spec is not available in the specification table.
Device Application
Distribution
This spec is not available in the specification table.
Mounting Mode
Fixed
This spec is not available in the specification table.
Network Frequency
50/60 Hz
This spec is not available in the specification table.
Utilisation Category
Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2
This spec is not available in the specification table.
Suitability for Isolation
Yes conforming to EN 60898-1
Yes conforming to EN 60947-2
Yes conforming to IEC 60898-1
Yes conforming to IEC 60947-2
This spec is not available in the specification table.
[Ics] Rated Service Breaking Capacity
15 kA 50 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 50 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz
5 kA 50 % conforming to EN 60947-2 - 440 V AC 50/60 Hz
15 kA 50 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 50 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz
5 kA 50 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz
7500 A 75 % conforming to EN 60898-1 - 400 V AC 50/60 Hz
7500 A 75 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz
21 kA 50 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz
21 kA 50 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz
15 kA 100 % conforming to IEC 60947-2 - 125...180 V DC
15 kA 100 % conforming to EN 60947-2 - 125...180 V DC
This spec is not available in the specification table.
Limitation Class
3 conforming to EN 60898-1
3 conforming to IEC 60898-1
This spec is not available in the specification table.
[Ui] Rated Insulation Voltage
500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2
This spec is not available in the specification table.
Contact Position Indicator
Yes
This spec is not available in the specification table.
Mounting Support
DIN rail
This spec is not available in the specification table.
Local Signalling
Trip indicator
This spec is not available in the specification table.
Overvoltage Category
IV
This spec is not available in the specification table.
Comb Busbar and Distribution Block Compatibility
Top or bottom: YES
This spec is not available in the specification table.
9 mm Pitches
6
This spec is not available in the specification table.
Height
85 mm
This spec is not available in the specification table.
Pollution Degree
3 conforming to EN 60947-2
3 conforming to IEC 60947-2
This spec is not available in the specification table.
Relative Humidity
95 % at 55 °C
This spec is not available in the specification table.
Operating Altitude
0...2000 m
This spec is not available in the specification table.
Wire Stripping Length
14 mm for top or bottom connection
This spec is not available in the specification table.
Earth-Leakage Protection
Separate block
This spec is not available in the specification table.
Tropicalisation
2 conforming to IEC 60068-1
This spec is not available in the specification table.
Product Description
