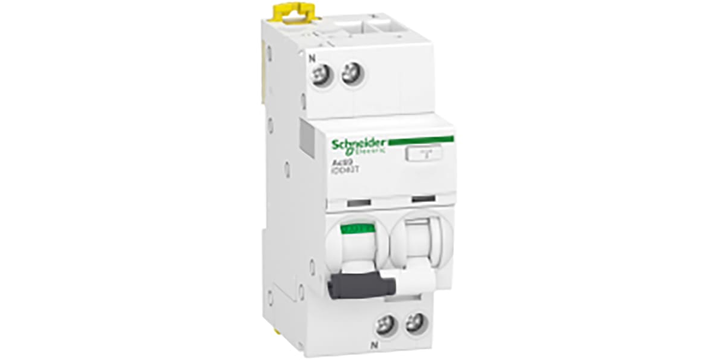

Schneider Electric A9DA2610 Rcbo, 10A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, Acti9 Range
Schneider Electric A9DA2610 Rcbo, 10A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, Acti9 Range
Brand: | SCHNEIDER ELECTRIC |
Model: | A9DA2610 |
Specifications
Please select at least one specification below.
[In] Rated Current
10 A
Earth-leakage Sensitivity
30 mA
Width
73 mm
This spec is not available in the specification table.
Trip Unit Technology
Thermal-Magnetic
This spec is not available in the specification table.
Control Type
Toggle Switch
This spec is not available in the specification table.
Range
Acti9
This spec is not available in the specification table.
Product Name
Idd40
This spec is not available in the specification table.
Depth
85 mm
This spec is not available in the specification table.
Poles Description
1P+N
This spec is not available in the specification table.
Mounting Support
DIN Rail Mount
This spec is not available in the specification table.
earth-leakage protection time delay
Instantaneous
This spec is not available in the specification table.
Rated AC Voltage
230 V
This spec is not available in the specification table.
Breaking Capacity at Maximum Voltage Rating
6 kA, 4500 A
This spec is not available in the specification table.
Tripping Characteristics
Type C
This spec is not available in the specification table.
Overall Length
36 mm
This spec is not available in the specification table.
Overall Dimensions
36 x 73 x 85 mm
This spec is not available in the specification table.
Terminal Contact Type
Screw
This spec is not available in the specification table.
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Product Description
S$ 310.01
(exc. GST)
S$ 337.91
(inc. GST)
