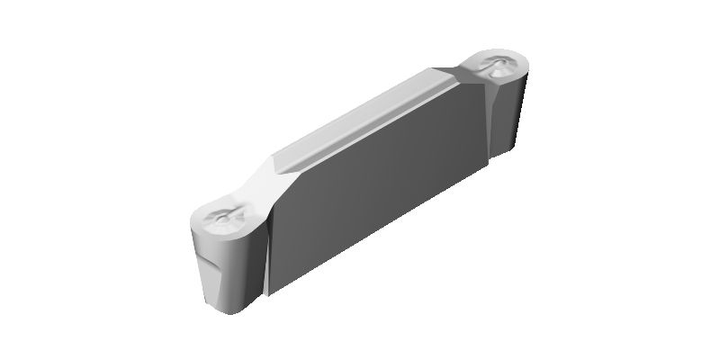

Sandvik Coromant Corocutⓡ 1-2 Insert for Profiling N123F2-0300-RO
Sandvik Coromant Corocutⓡ 1-2 Insert for Profiling N123F2-0300-RO
Product Description

Sandvik Coromant Corocutⓡ 1-2 Insert for Profiling N123F2-0300-RO

Chip breaker manufacturer's designation (CBMD)RO

Insert size and shape (CUTINTSIZESHAPE)CoroCut 1-2 -size F2

Cutting width (CW)3 mm

Cutting width lower tolerance (CWTOLL)-0.02 mm

Cutting width upper tolerance (CWTOLU)0.02 mm

Corner radius (RE)1.5 mm

Corner radius lower tolerance (RETOLL)-0.01 mm

Corner radius upper tolerance (RETOLU)0.01 mm

Cutting depth maximum (CDX)18.7 mm

Machine side body angle (BAMS)0 deg

Depth of cut maximum (APMXX)1.3 mm

Hand (HAND)N

Grade (GRADE)H13A

Clearance angle major (AN)7 deg

Length interfering edge (LIG)20.05 mm

Weight of item (WT)0.003 kg

Sensor embedded property (SEP)0

Life cycle state (LCS)Released

Release pack id (RELEASEPACK)01.1

S$ 402.50
(exc. GST)
S$ 438.73
(inc. GST)
Quantity:
/ EA
MOQ of 10 EA
Bundle of 10 EA
