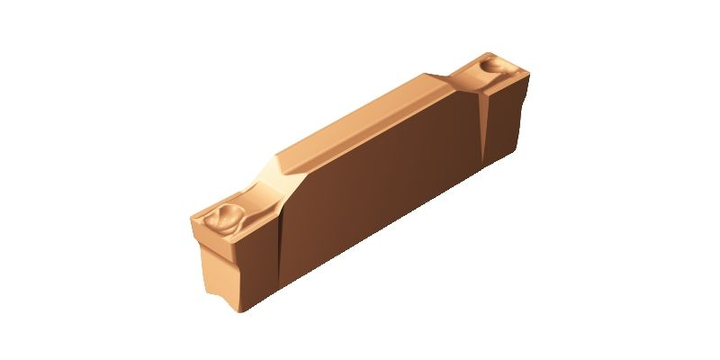

Sandvik Coromant Corocutⓡ 1-2 Insert for Grooving N123E2-0200-0004-GF
Sandvik Coromant Corocutⓡ 1-2 Insert for Grooving N123E2-0200-0004-GF
Brand: | Sandvik Coromant |
Model: | N123E2-0200-0004-GF |
Product Description
Sandvik Coromant Corocutⓡ 1-2 Insert for Grooving N123E2-0200-0004-GF
Chip breaker manufacturer's designation (CBMD)
GF
Insert size and shape (CUTINTSIZESHAPE)
CoroCut 1-2 -size E2
Cutting width (CW)
2 mm
Cutting width lower tolerance (CWTOLL)
0.02 mm
Cutting width upper tolerance (CWTOLU)
0.02 mm
Corner radius left (REL)
0.4 mm
Corner radius right (RER)
0.4 mm
Corner radius lower tolerance (RETOLL)
0.05 mm
Corner radius upper tolerance (RETOLU)
0.05 mm
Cutting depth maximum (CDX)
19.2 mm
Machine side body angle (BAMS)
0 deg
Hand (HAND)
N
Grade (GRADE)
1125
Coating (COATING)
PVD TIALN
Clearance angle major (AN)
7 deg
Length interfering edge (LIG)
20.05 mm
Weight of item (WT)
0.002 kg
Sensor embedded property (SEP)
0
Life cycle state (LCS)
Released
Release pack id (RELEASEPACK)
07.2
S$ 536.00
(exc. GST)
S$ 584.24
(inc. GST)
Quantity:
/ EA
MOQ of 10 EA
Bundle of 10 EA
