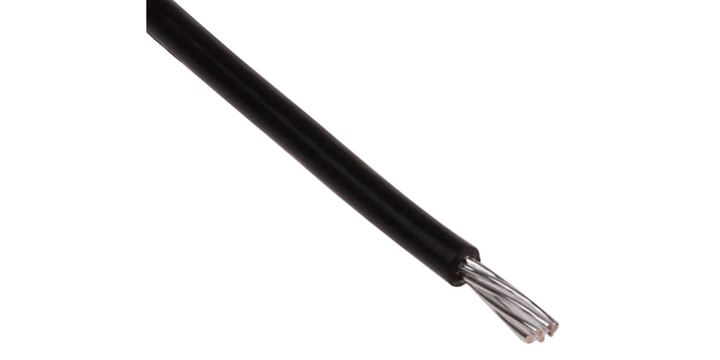

Rs Pro 8417330 Black 0.22 Mm² Hook up Wire, 24 Awg, 7/0.2 Mm, 25m, Ptfe Insulation (1 Reel of 25 Metres)
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
25 m
Current Rating
6 A
Voltage Rating
600 V
Specification Met
BS 3G 210:1996
Sheath Colour
Black
Insulation Material
PTFE
American Wire Gauge
24 AWG
Minimum Operating Temperature
-75°C
Maximum Operating Temperature
+200°C
Outer Diameter
1.2 mm
Number of Strands
7
Size of Strands
0.2 mm
Conductor Material
Silver Plated Copper
Core Strands
7/0.2 mm
Wire Style
BS3G210
Insulation Wall Thickness
0.25 mm
Product Description
S$ 54.46
(exc. GST)
S$ 59.36
(inc. GST)
