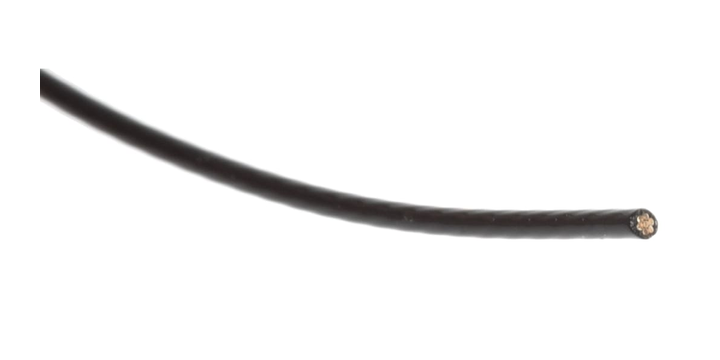

Rs Pro 8417223 Black 0.22 Mm² Hook up Wire, 24 Awg, 7/0.2 Mm, 100m, Ptfe Insulation (1 Reel of 100 Metres)
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
100 m
Current Rating
6 A
Voltage Rating
300 V
Specification Met
BS 3G 210:1996
Sheath Colour
Black
Insulation Material
PTFE
American Wire Gauge
24 AWG
Minimum Operating Temperature
-75°C
Maximum Operating Temperature
+200°C
Outer Diameter
0.95 mm
Number of Strands
7
Size of Strands
0.2 mm
Conductor Material
Silver Plated Copper
Core Strands
7/0.2 mm
Wire Style
BS3G210
Insulation Wall Thickness
0.15 mm
Product Description
S$ 155.65
(exc. GST)
S$ 169.66
(inc. GST)
