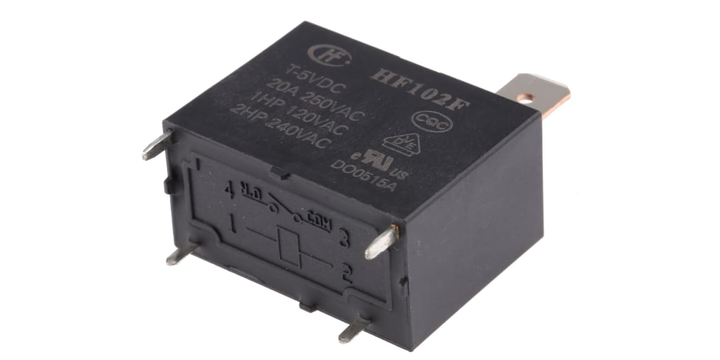

Rs Pro 8004530P Pcb Mount Power Relay, 5V Dc Coil, 25A Switching Current, Spst
Rs Pro 8004530P Pcb Mount Power Relay, 5V Dc Coil, 25A Switching Current, Spst
Brand:
RS Pro
Model:
8004530P
Technical Data Sheets
Specifications
infotip-icon
View other Power Relay dimensions or variations
Please select at least one specification below.
Length
30.5 mm
Application
Power
Mounting Type
PCB Mount
Depth
16 mm
Height
23.5 mm
Contact Material
Silver Alloy
Contact Configuration
SPST
Coil Voltage
5 V dc
Standards Met
CQC, CULus, RoHS Compliant
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+85°C
Terminal Type
Through Hole
Maximum Switching Voltage AC
250 V ac
Coil Power
900 mW
Coil Resistance
27.8 Ohm
Isolation Coil To Contact
4.5 kV ac
Switching Current
25 A
Maximum Switching Power AC
6.25 kVA
Number of Poles
1
This spec is not available in the specification table.
Life
100000 (Electrical) Operations, 100000000 (Mechanical) Operations
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Product Description
S$ 7.81
(exc. GST)
S$ 8.51
(inc. GST)
Lead time of 90 working days required.
Item will be ready to dispatch within the lead time specified.
