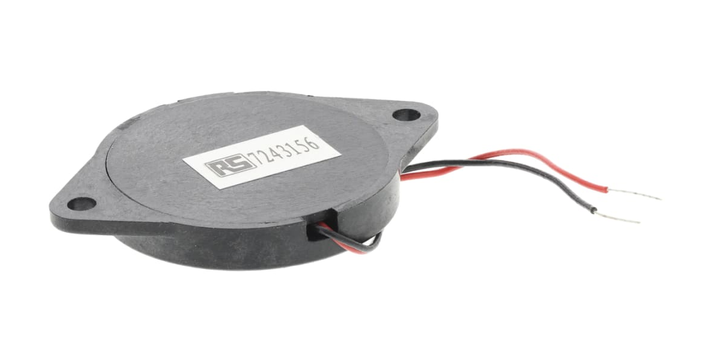

Rs Pro 7243156 90dB Panel Mount Square Wave External Piezo Buzzer, 34 X 24 X 4mm, 1V Min, 30V Max
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
34 mm
Mounting Type
Panel Mount
Depth
24 mm
Height
4 mm
Dimensions
34 x 24 x 4 mm
Diameter
24 mm
Drive Type
External
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+70°C
Minimum Supply Voltage
1V
Maximum Supply Voltage
30V
Sound Level
90 dB
Tone Type
Square Wave
Maximum Frequency
6.2 kHz
Supply Current
8 mA
Minimum Frequency
4800 Hz
Capacitance
18 nF
Product Description
S$ 4.81
(exc. GST)
S$ 5.24
(inc. GST)
Quantity:
EA
MOQ of 2 EA
Bundle of 2 EA
