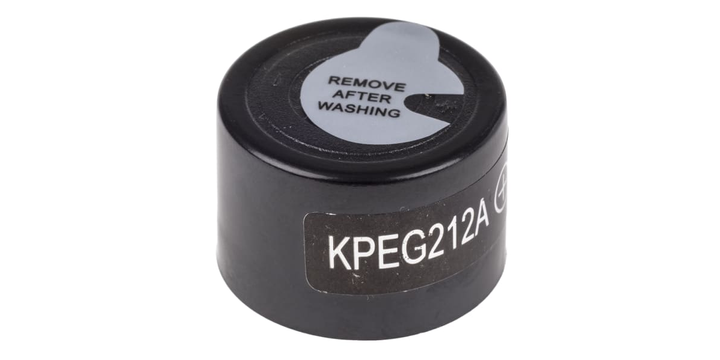

Rs Pro 6221405 83dB Through Hole Continuous Internal Buzzer, 24 (dia.) X 16mm, 3V Dc Min, 20V Dc Max
Rs Pro 6221405 83dB Through Hole Continuous Internal Buzzer, 24 (dia.) X 16mm, 3V Dc Min, 20V Dc Max
Brand:
RS Pro
Model:
6221405
Technical Data Sheets
Specifications
infotip-icon
View other Piezo Buzzers dimensions or variations
Please select at least one specification below.
Mounting Type
Through Hole
Height
16 mm
Dimensions
24 (Dia.) x 16 mm
Diameter
24 mm
Drive Type
Internal
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+85°C
Minimum Supply Voltage
3V dc
Maximum Supply Voltage
20V dc
Sound Level
83 dB
Tone Type
Continuous
Maximum Frequency
3.4 kHz
Supply Current
8 mA
Minimum Frequency
2400 Hz
Product Description
