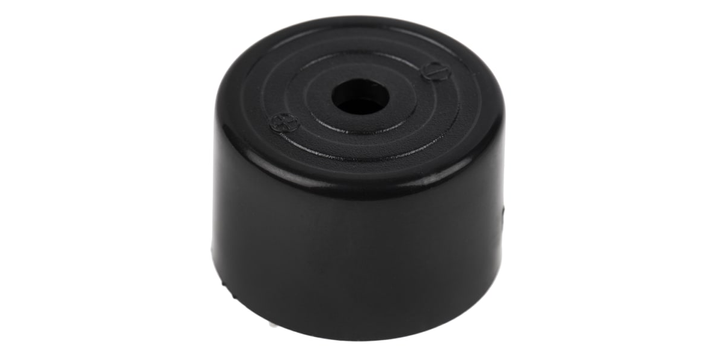

Rs Pro 6221348 93dB Through Hole Continuous Internal Buzzer, 24.5 (dia.) X 16mm, 3V Dc Min, 20V Dc Max
Rs Pro 6221348 93dB Through Hole Continuous Internal Buzzer, 24.5 (dia.) X 16mm, 3V Dc Min, 20V Dc Max
Brand:
RS Pro
Model:
6221348
Technical Data Sheets
Specifications
infotip-icon
View other Piezo Buzzers dimensions or variations
Please select at least one specification below.
Mounting Type
Through Hole
Height
16 mm
Dimensions
24.5 (Dia.) x 16 mm
Diameter
24.5 mm
Drive Type
Internal
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+85°C
Minimum Supply Voltage
3V dc
Maximum Supply Voltage
20V dc
Sound Level
93 dB
Tone Type
Continuous
Maximum Frequency
3.9 kHz
Supply Current
9 mA
Minimum Frequency
2900 Hz
