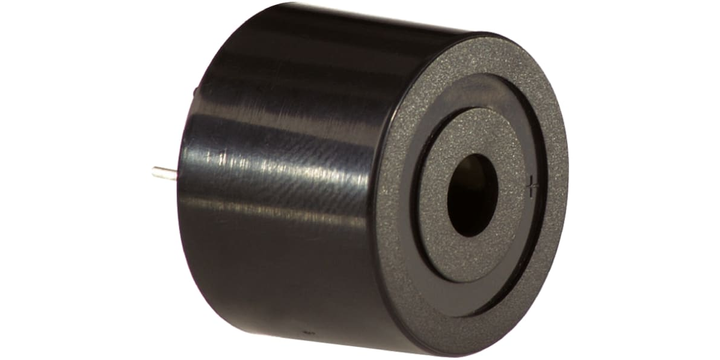

Rs Pro 6173075 85dB Through Hole Continuous Internal Piezo Buzzer, 23.8 X 16mm, 3V Dc Min, 20V Dc Max
Technical Data Sheets
Specifications
Please select at least one specification below.
Mounting Type
Through Hole
Height
16 mm
Dimensions
23.8 x 16 mm
Diameter
23.8 mm
Drive Type
Internal
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+60°C
Minimum Supply Voltage
3V dc
Maximum Supply Voltage
20V dc
Sound Level
85 dB
Tone Type
Continuous
Maximum Frequency
3.4 kHz
Supply Current
8 mA
Minimum Frequency
2400 Hz
Product Description
S$ 3.59
(exc. GST)
S$ 3.91
(inc. GST)
