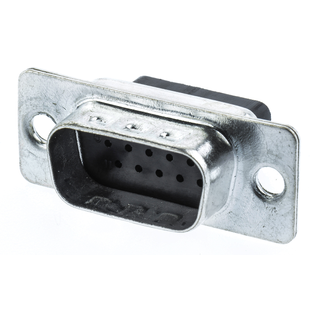

Rs Pro 5443783 15 Way Panel Mount D-sub Connector Socket, 2.77mm Pitch
Rs Pro 5443783 15 Way Panel Mount D-sub Connector Socket, 2.77mm Pitch
Brand:
RS Pro
Model:
5443783
Specifications
infotip-icon
View other D Sub Connectors dimensions or variations
Please select at least one specification below.
Length
39.14 mm
Pitch
2.77 mm
Current Rating
5.0 A
Mounting Type
Panel Mount
Depth
12.55 mm
Voltage Rating
500 V ac
Dimensions
39.14 x 10.85 x 12.55 mm
Contact Material
Phosphor Bronze
Gender
Female
Termination Method
Solder
Body Orientation
Straight
Contact Plating
Gold
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+105°C
Number of Contacts
15
D Connector Type
Standard D-Sub
D-Sub Shell Size
A
Housing Material
Steel
Series Number
-
Mounting Hardware
-
Contact Size
-
Product Description


S$ 13.60
(exc. GST)
S$ 14.69
(inc. GST)
Quantity:
Minimum order of 5 units, in Sets of 5
