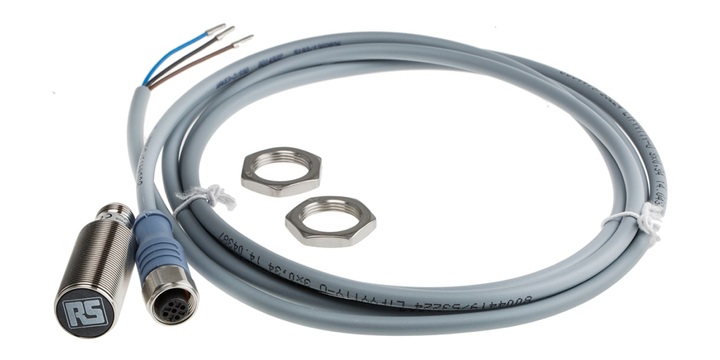

Rs Pro 208213 Inductive Barrel-Style Proximity Sensor, M18 X 1, 5 Mm Detection, Pnp Output, 10 - 30 V Dc, IP68

View Brand

Rs Pro 208213 Inductive Barrel-Style Proximity Sensor, M18 X 1, 5 Mm Detection, Pnp Output, 10 - 30 V Dc, IP68

Brand:	RS Pro
Model:	208213

Technical Data Sheets

RS Pro Datasheet

RS PRO Factory Automation Sensors Guide

Specifications

View other Proximity Sensors dimensions or variations

Length

52 mm

Thread Size

M18 x 1

Mounting Type

Flush

Body Style

Barrel

Supply Voltage

10 → 30 V dc

IP Rating

IP68

Maximum Operating Temperature

+85°C

Terminal Type

M12 - 4 Pin

Maximum DC Voltage

30 V

Housing Material

Stainless Steel

Detection Range

5 mm

Output Type

PNP-NO

Switching Current

200 mA

Sensor Technology

Inductive

Maximum Switching Frequency

2.5k Hz

Product Description

S$ 139.26

(exc. GST)

S$ 151.79

(inc. GST)
